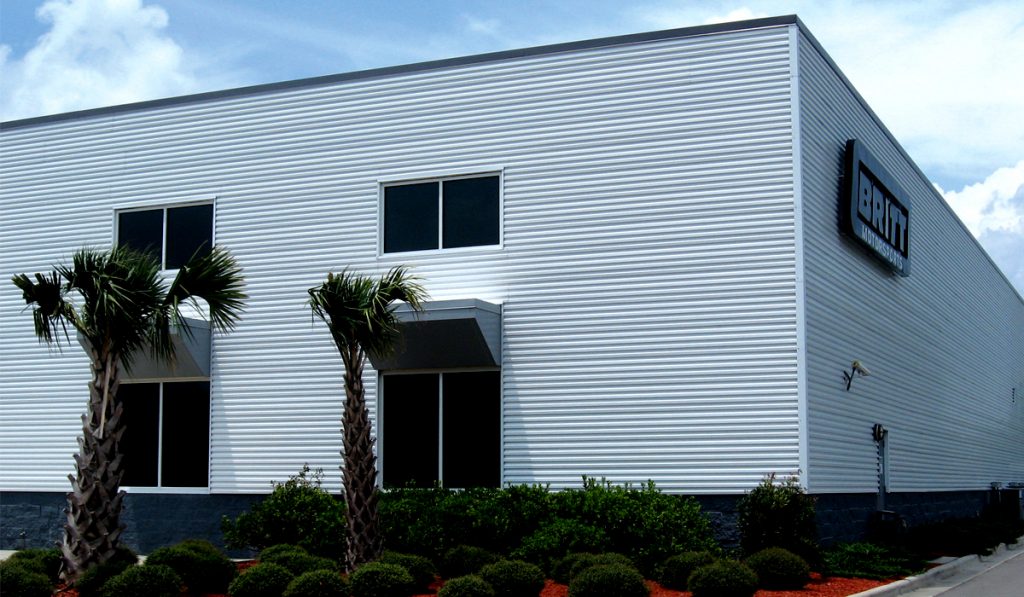

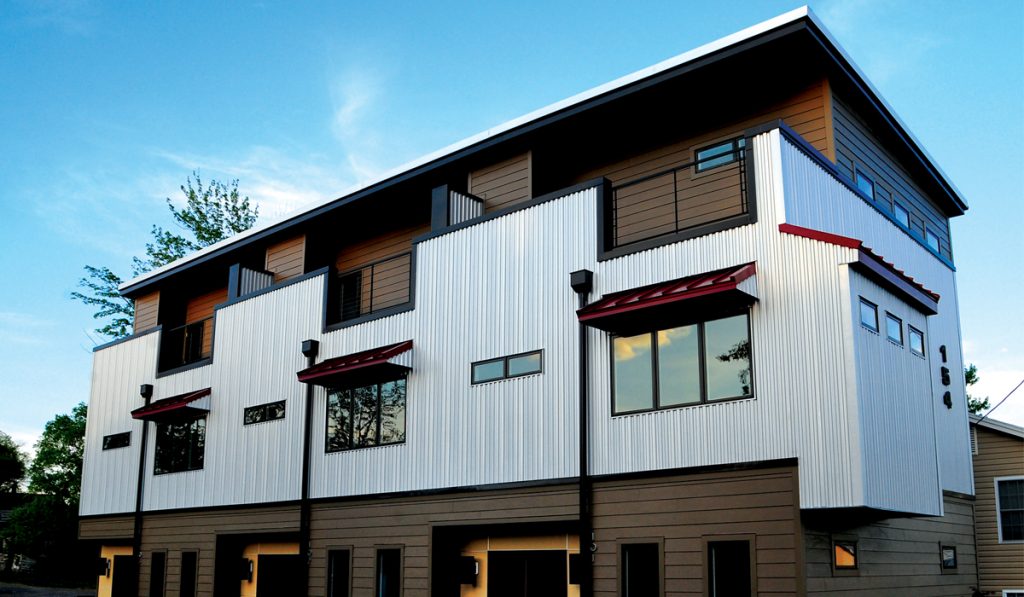

Rigid Wall™ is a structural wall panel, with a dramatic shadow line created by the ribs. The panel can be installed vertically or horizontally with concealed fasteners over open framing or solid substrate. The direct fasteners eliminate the need for clips in the installation procedure, and provide savings on material and labor. Ideal applications are mansards, equipment screens and walls.

You can also enhance aesthetics of Rigid Wall™ by using factory fabricated Elite Series accessories, including the Z Box and Closure Angle shown.

PRODUCT INFO
SKU:

MFR160

Material:

.032, .040, .050 aluminum
24, 22*, 20*, 18* ga. metallic coated steel
24, 22*, 20*, 18* ga. 55% Al-Zn alloy coated steel with acrylic coating
1.0 mm zinc*

Panel Coverage:

16”

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

⅞”

Texture:

Smooth
Stucco Embossed

Perforations Available:

Yes

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format - Horizontal Application - Solid Substrate
PDF File Format - Vertical Application - Solid Substrate
PDF File Format - Horizontal Application - Open Framing
PDF File Format - Vertical Application - Open Framing
PDF File Format - Horizontal Application - Elite Trims
PDF File Format - Vertical Application - Elite Trims
DWG File Format - Horizontal Application - Solid Substrate
DWG File Format - Vertical Application - Solid Substrate
DWG File Format - Horizontal Application - Open Framing
DWG File Format - Vertical Application - Open Framing
DWG File Format - Horizontal Application - Elite Trims
DWG File Format - Vertical Application - Elite Trims
GALLERY
DOCUMENTS

Rigid Wall Product Brochure

Rigid Wall Spec Data Sheet

ATAS Color Chart

Rigid Wall Load Table (Aluminum)

Rigid Wall Load Table (Steel)

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

Solar Reflectance & Thermal Emittance Chart

ATAS Manufacturer Qualification Statement
