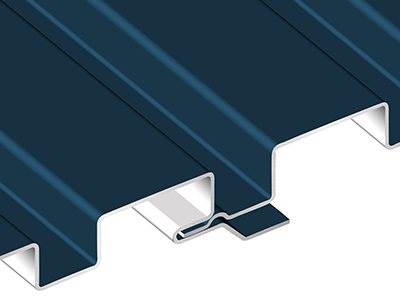

OPM Interlock
OPM Interlock
OPN
OPN
OPN Interlock
OPN Interlock
OPW
OPW
OPW Interlock
OPW Interlock
Z Box
Z Box
Closure Angle
Closure Angle
Opaline

Profile Options:

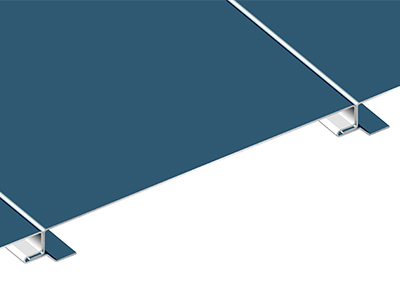

OPF
OPF

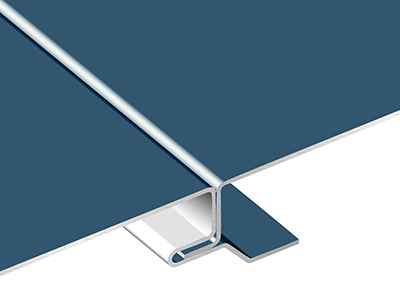

OPF Interlock
OPF Interlock
OPM
OPM
OPM Interlock
OPM Interlock

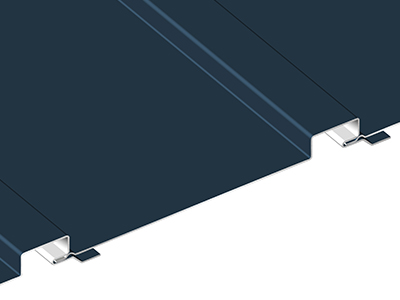

OPN
OPN
OPN Interlock
OPN Interlock

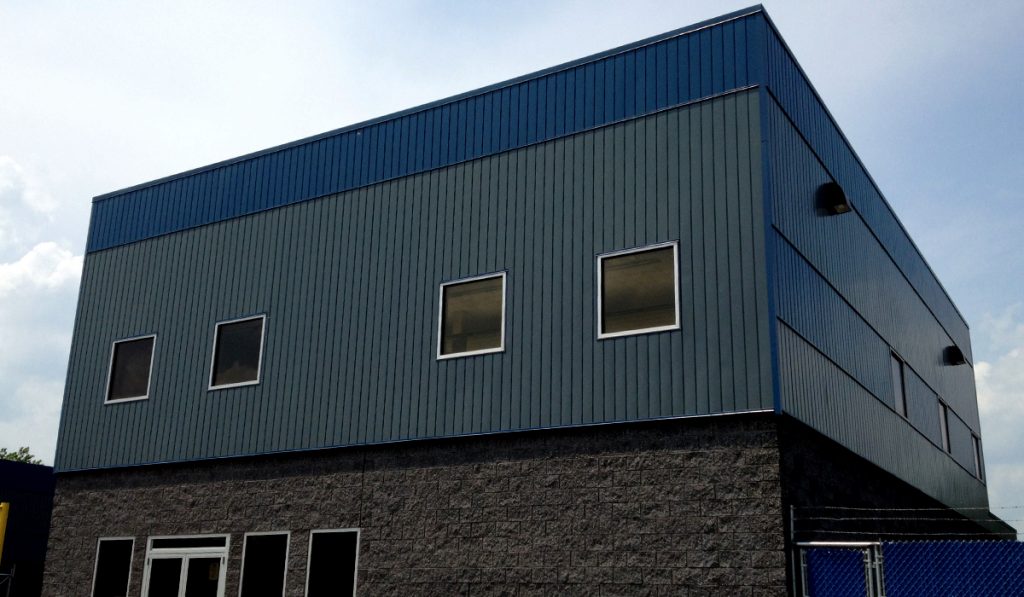

OPW
OPW
OPW Interlock
OPW Interlock
Z Box
Z Box
Closure Angle
Closure Angle

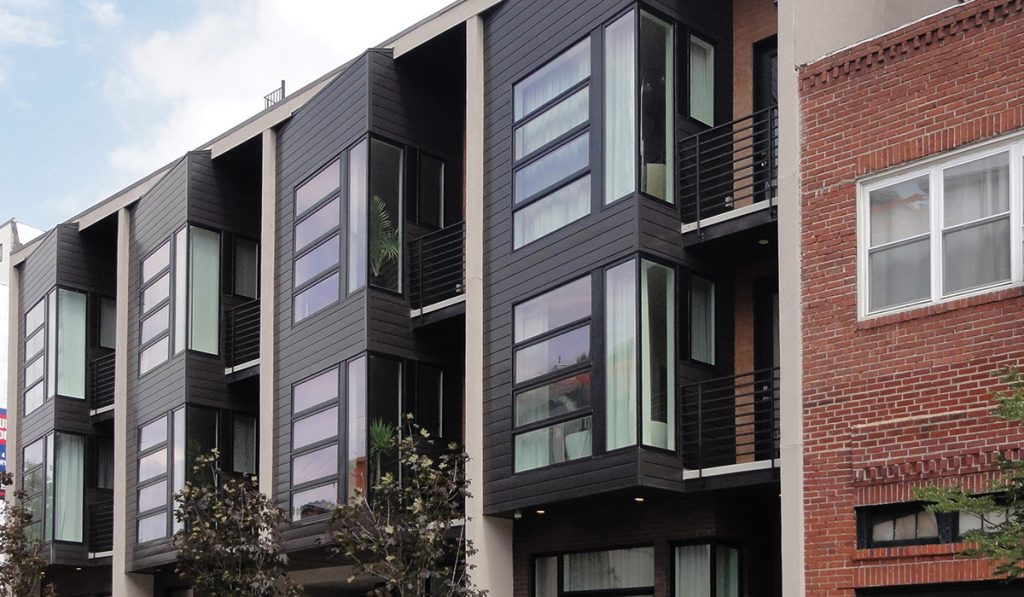

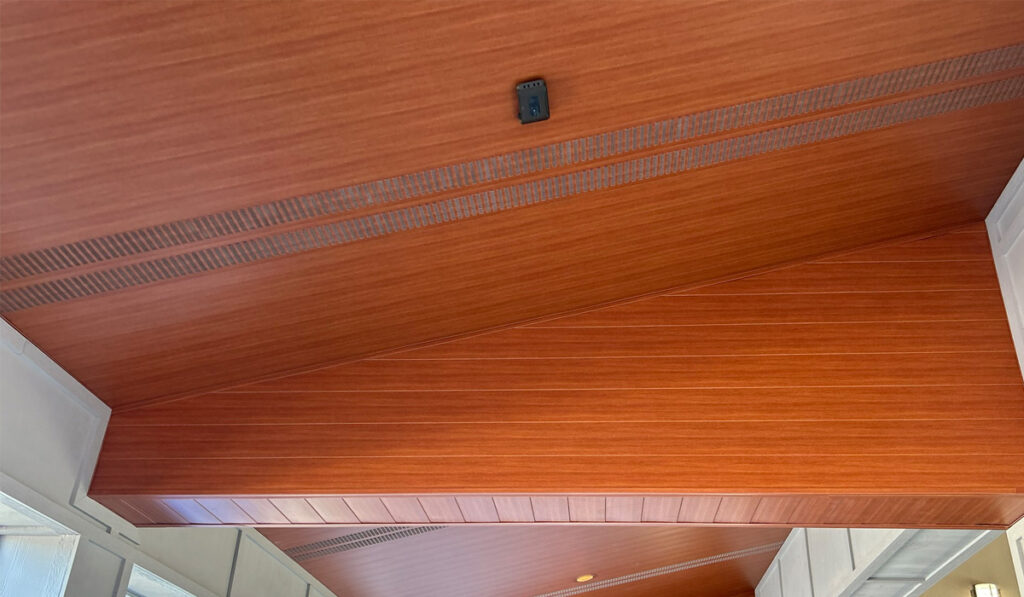

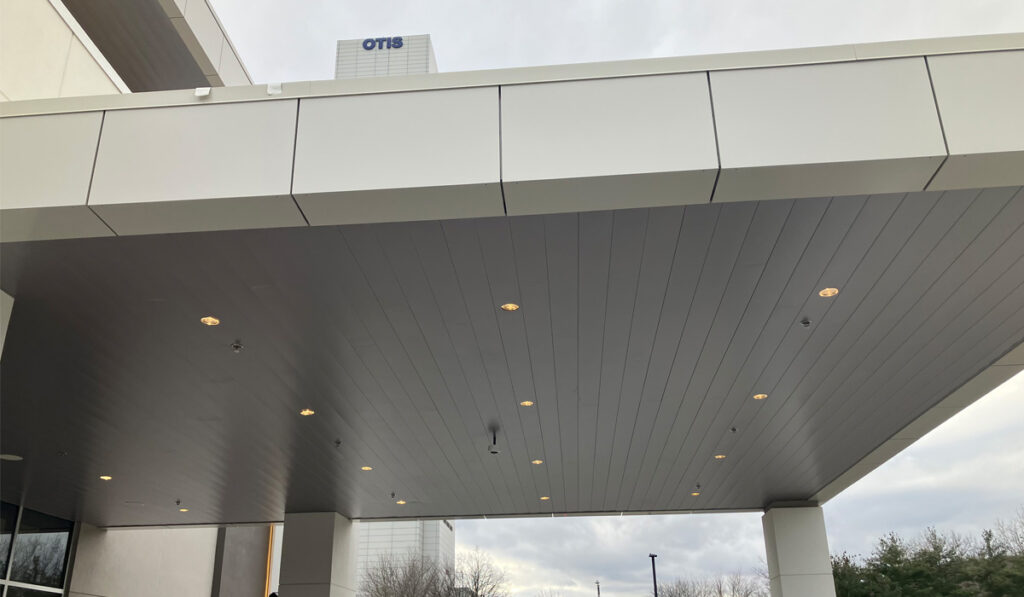

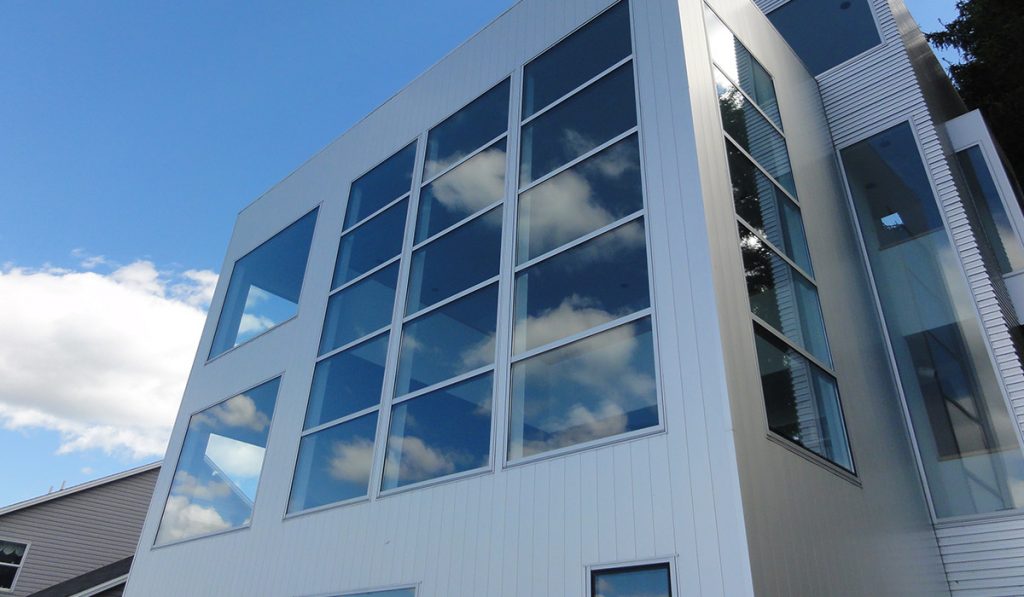

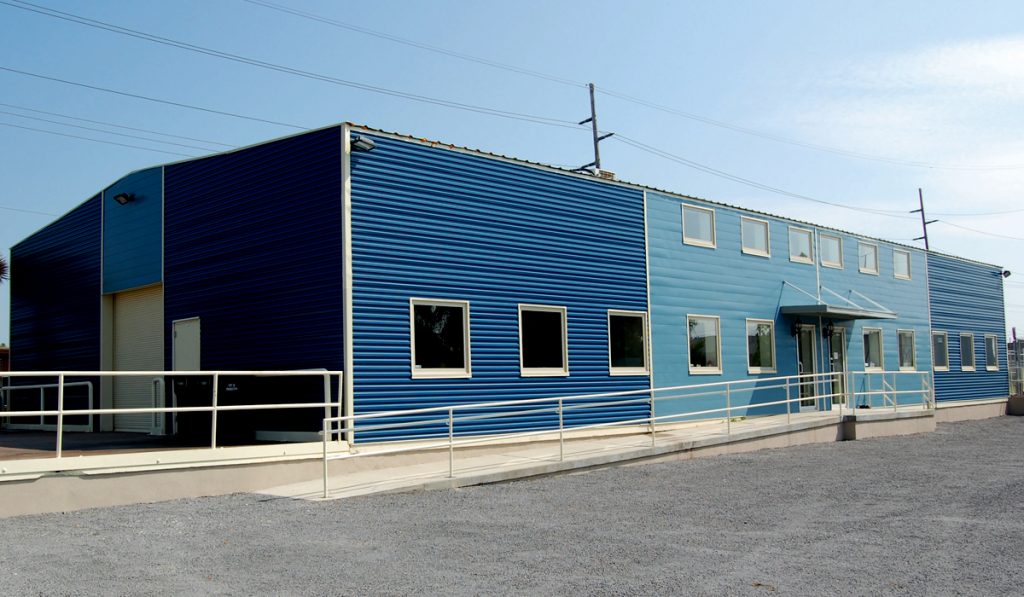

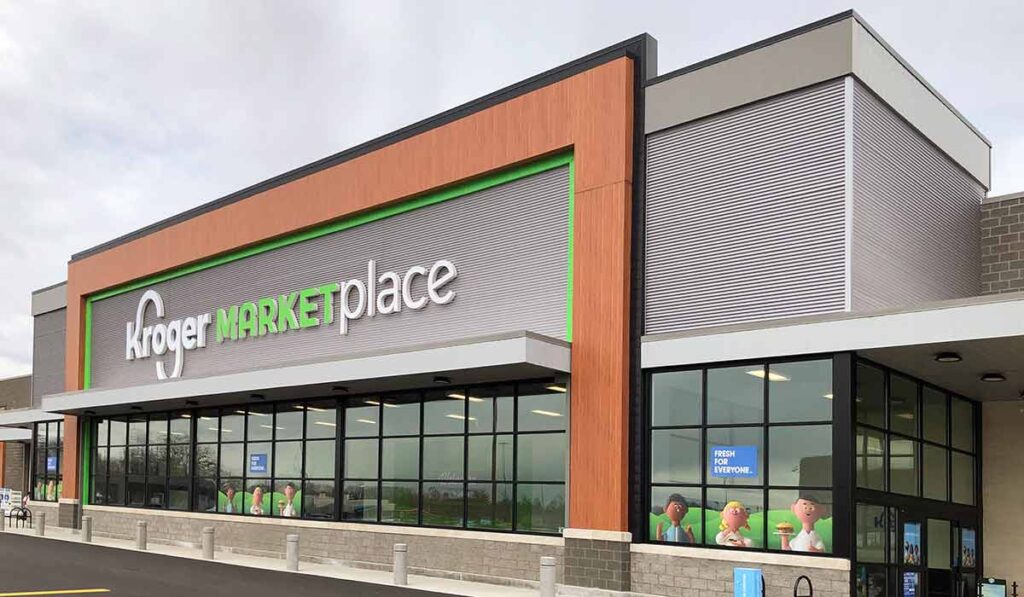

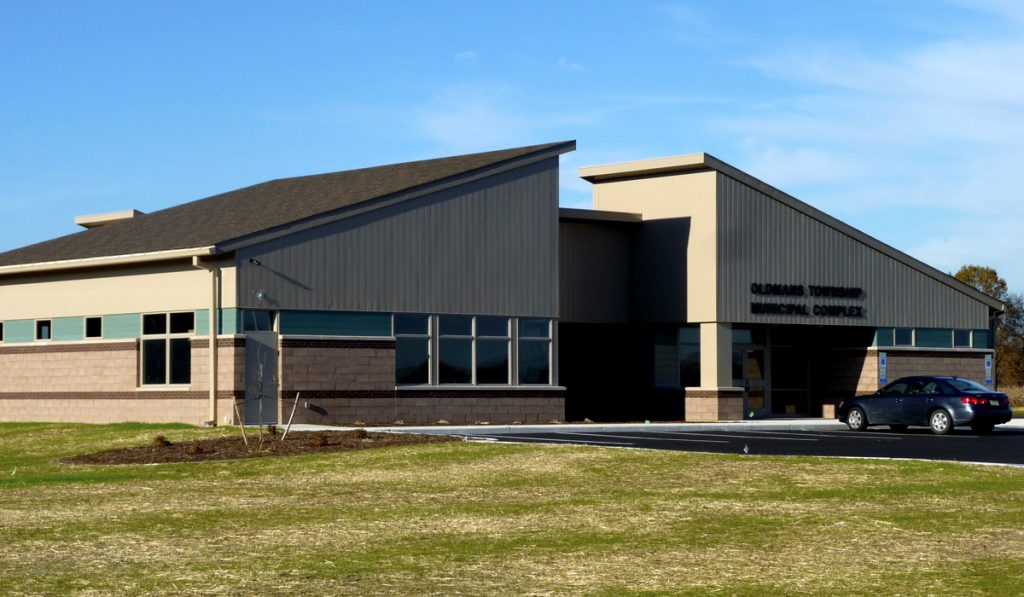

Opaline™ is a series of structural panels that can be installed on open framing (subject to design considerations). It installs as an enhanced tongue and groove design with improved mechanical fastener clearance. The fasteners are hidden by the adjacent panel. Panels are available with smooth or stucco embossed texture. Ideal applications for Opaline™ are walls, vertical fascias, soffits, ceilings or sign bands, alternatives for E.I.F.S., laminated or extruded panels. The panel can be used in lieu of wide face flashing details.

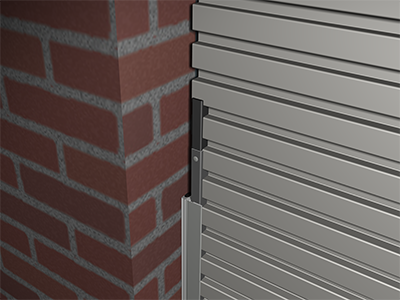

You can also enhance aesthetics of Opaline™ by using factory fabricated Elite Series accessories, including the Z Box and Closure Angle shown.



Florida Building Product Approval: FL 16083

PRODUCT INFO
SKU:

OPF
OPM
OPN
OPW

Material:

.032 aluminum
.040 aluminum (OPF, OPN, OPW only)
24 ga. metallic coated steel
16, 20 oz. copper*

Panel Coverage:

OPF, OPN: 4″, 6″, 8″
OPM: 4½”
OPW: 4½”, 6½”, 8½”

Minimum Panel Length:

1’-6”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

¾”

Texture:

Smooth
Stucco Embossed
Wood Grain Embossed (24 ga. metallic coated steel, .032 & .040 aluminum only)

Perforations Available:

Yes

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Florida Building Product Approval

FL 16083.1

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability
