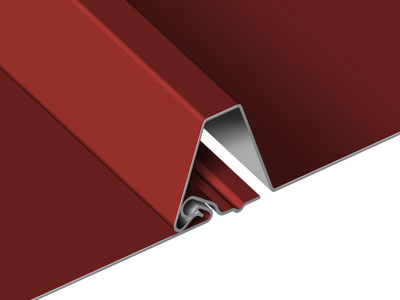

MPN Interlock
MPN Interlock

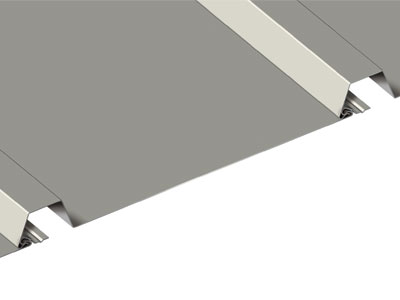

MPW
MPW

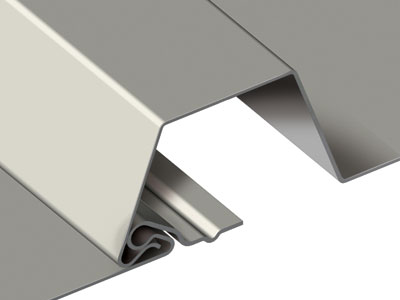

MPW Interlock
MPW Interlock

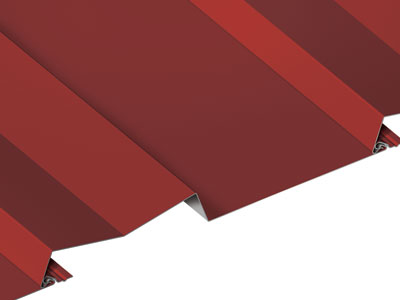

MPV
MPV
MPV Interlock
MPV Interlock

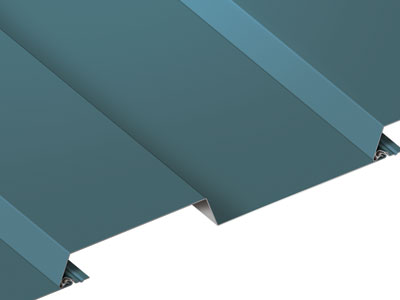

MPH
MPH
MPH Interlock
MPH Interlock

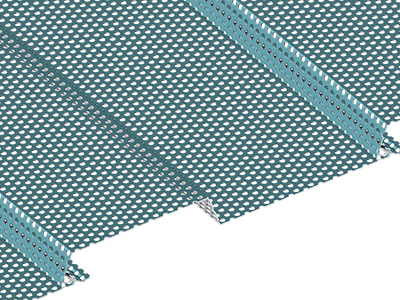

MPH Perforated
MPH Perforated
MPS
MPS
MPS Interlock
MPS Interlock
Z Box
Z Box
Closure Angle
Closure Angle
Multi-Purpose Panels

Profile Options:

MPN
MPN
MPN Interlock
MPN Interlock
MPW
MPW
MPW Interlock
MPW Interlock
MPV
MPV
MPV Interlock
MPV Interlock
MPH
MPH
MPH Interlock
MPH Interlock
MPH Perforated
MPH Perforated
MPS
MPS
MPS Interlock
MPS Interlock
Z Box
Z Box
Closure Angle
Closure Angle

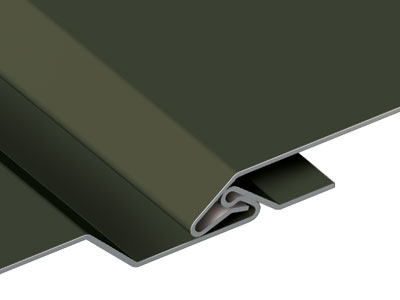

The variations of this profile start with the standing seam, to the batten style, to the plank and barn board. The texture is either smooth or stucco embossed. A slight “V” is formed into the plank or barn board for a variance of style. The Multi-Purpose™ panels with the Wind-Lok® interlock have a smooth but sleek appearance with a concealed clipless fastening system. This interlock also allows the Multi-Purpose™ panels to be combined with Corra-Lok™,  Metafor™, and Rigid Wall II™ for the ability to create interesting patterns and breaks. Typical applications include walls, fascias, mansards, equipment screens and some limited roofing with a minimum slope of 3:12.

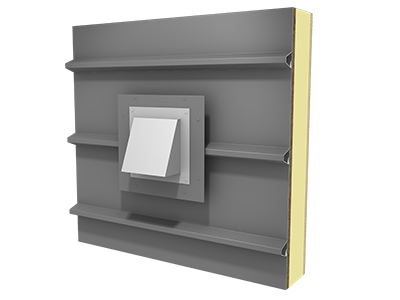

You can also enhance aesthetics of Multi-Purpose™ by using factory fabricated Elite Series accessories, including the Z Box and Closure Angle shown.



Florida Building Code Product Approval: FL 16083 (MPS120)





PRODUCT INFO
SKU:

MPN
MPW
MPV
MPH
MPS

Material:

.032, .040 aluminum
24, 22* ga. metallic coated steel
16, 20 oz. copper*
.8, 1.0 mm zinc*
.0197 classic & tin matte stainless steel*
(MPS: .032 aluminum only)

Panel Coverage:

8″
12″
16″

Minimum Panel Length:

3’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

1¼”
⅜” (MPS)

Texture:

Smooth
Stucco Embossed
Wood Grain Embossed (24 ga. metallic coated steel, .032 aluminum & .040 aluminum only)

Perforations Available:

Yes

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Florida Building Product Approval:

FL 16083 (MPS120)

*Subject to minimum quantities and extended lead time
 Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format - Horizontal Application - Solid Substrate
PDF File Format - Vertical Application - Solid Substrate
PDF File Format - Horizontal Application - Open Framing
PDF File Format - Vertical Application - Open Framing
DWG File Format - Horizontal Application - Solid Substrate
DWG File Format - Vertical Application - Solid Substrate
DWG File Format - Horizontal Application - Open Framing
DWG File Format - Vertical Application - Open Framing

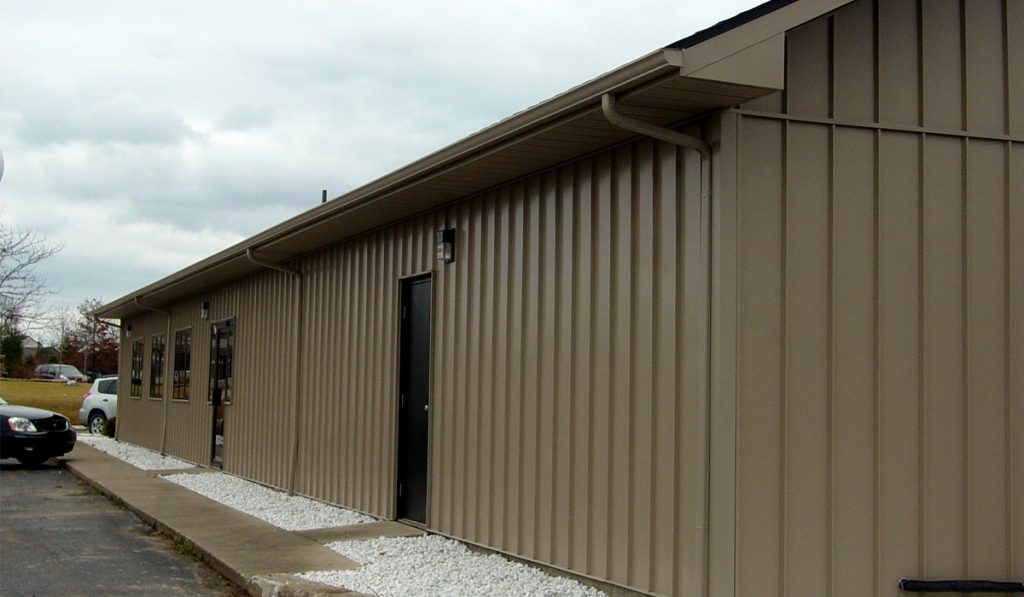

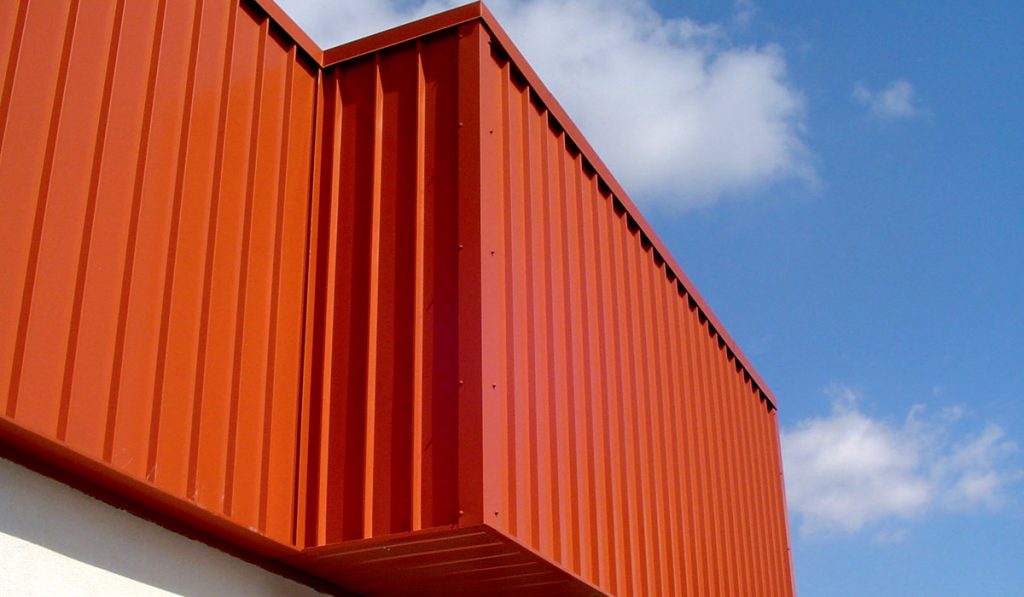

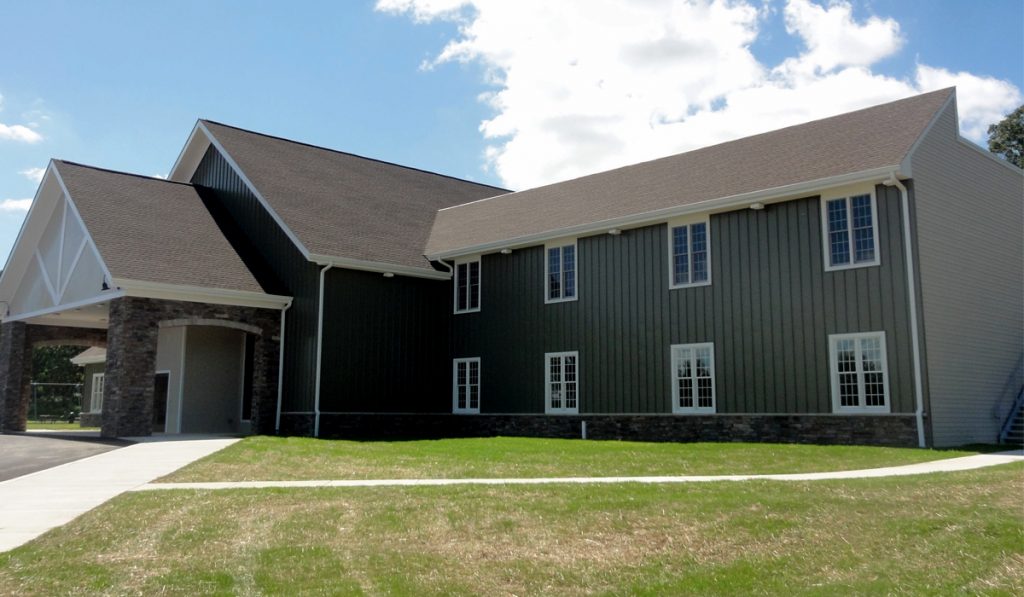

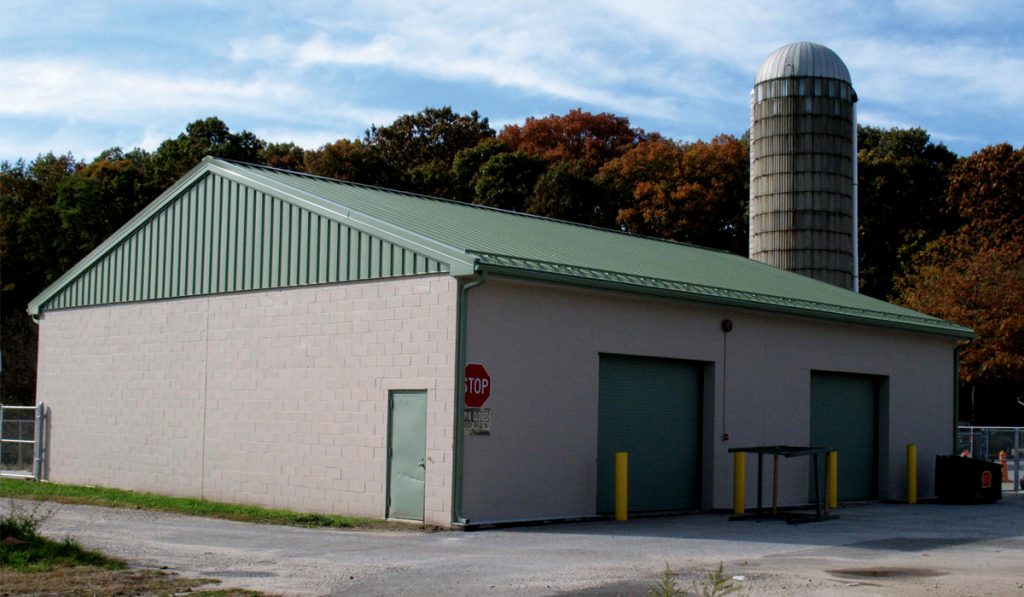

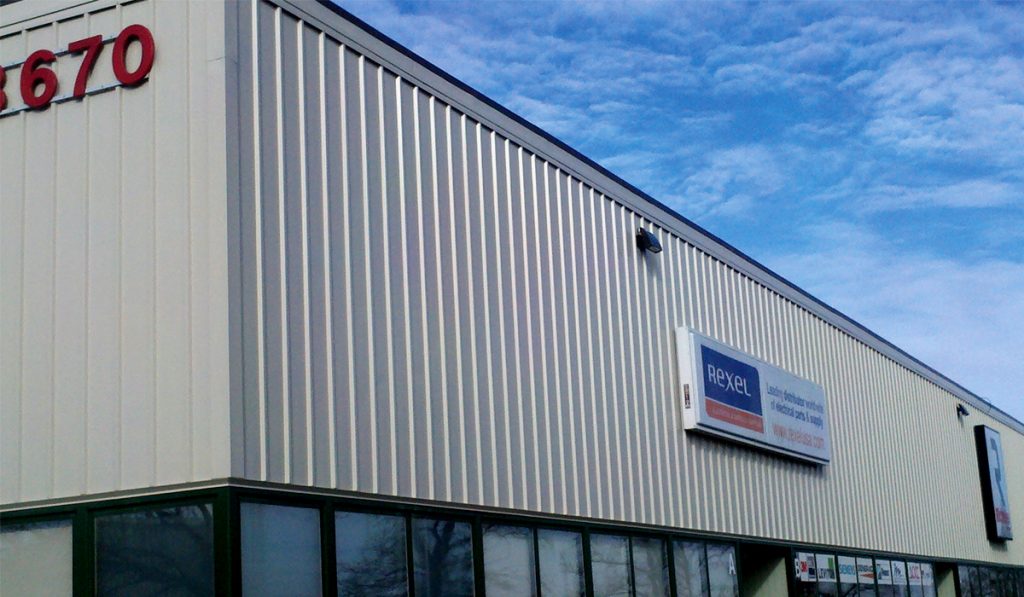

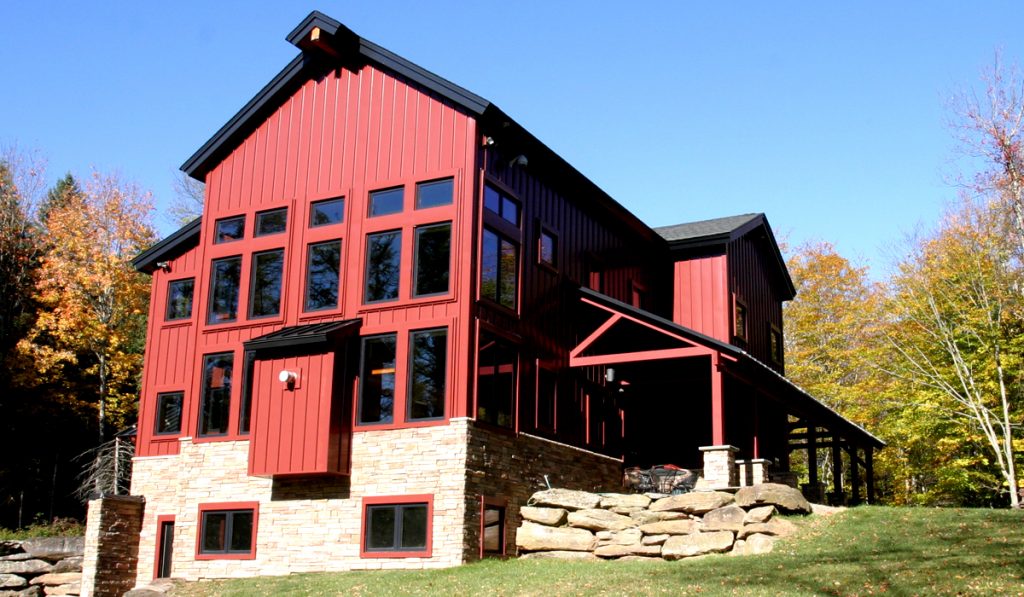

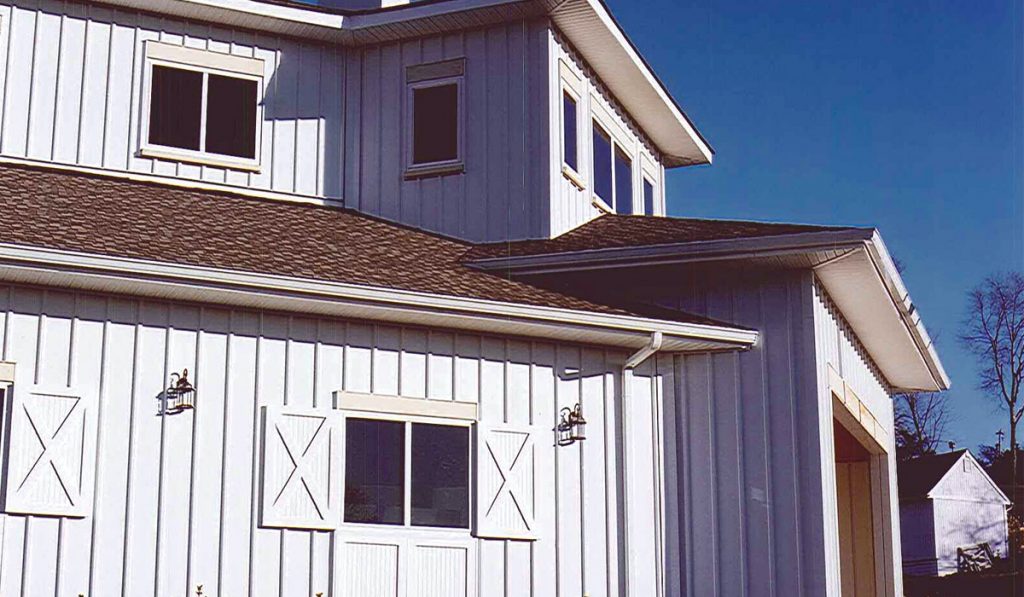

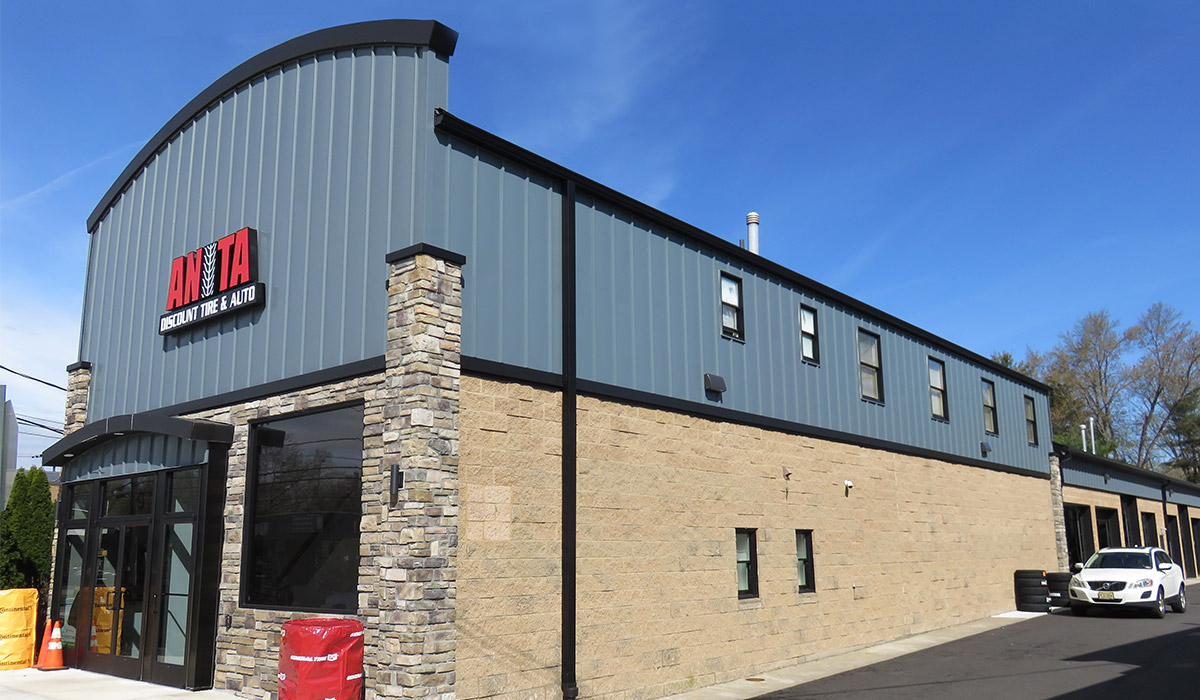

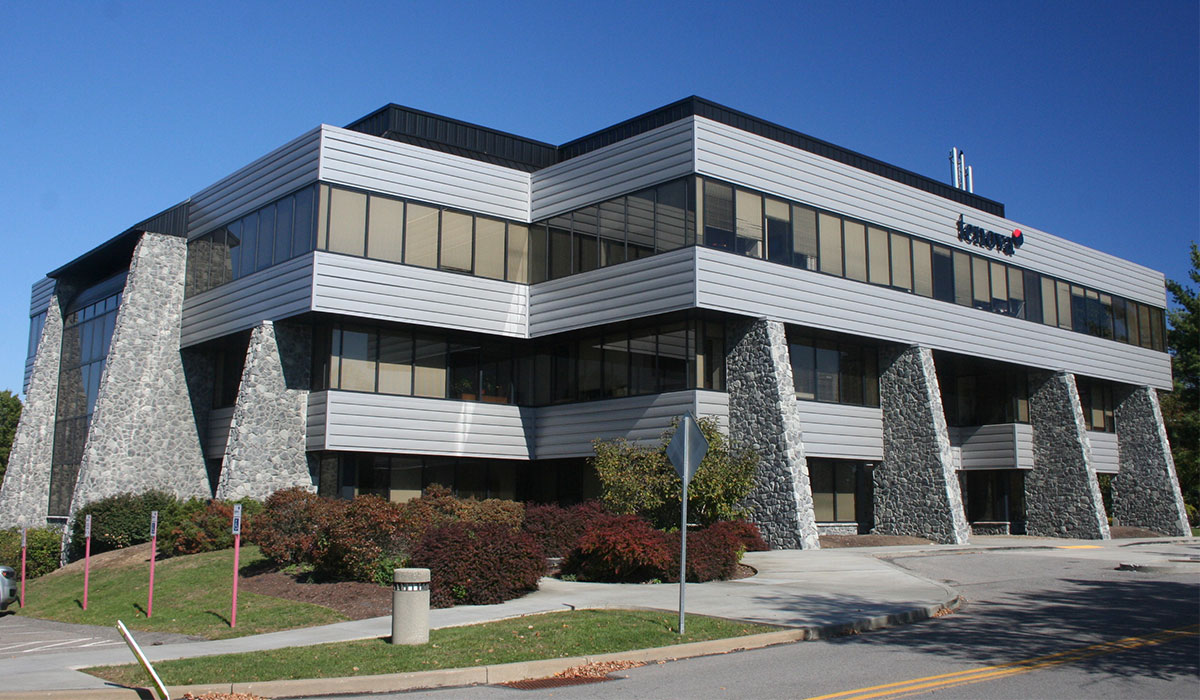

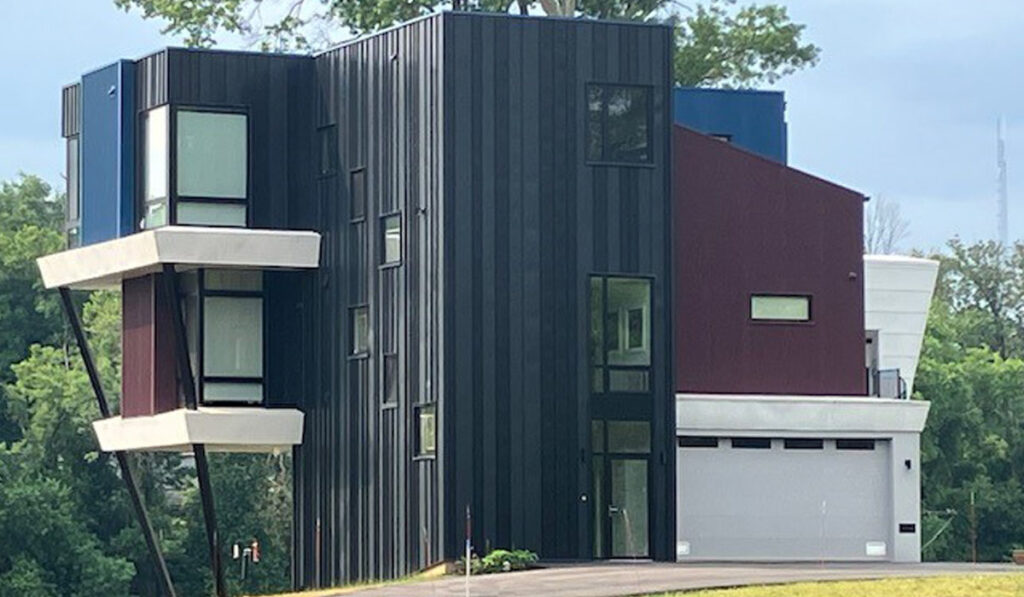

GALLERY
DOCUMENTS

Multi-Purpose Panel Product Brochure

Multi-Purpose Panel Spec Data Sheet

ATAS Color Chart

MPH125 & MPH127 Load Table (Aluminum)

MPH080 & MPH127 Load Table (Steel)

MPN120 & MPN160 Load Table (Aluminum)

MPN080 & MPN160 Load Table (Steel)

MPS120 Load Table

MPV080 Load Table

MPV125, MPV165, MPV127, & MPV167 Load Table (Aluminum)

MPV127 & MPV167 Load Table (Steel)

MPW080 Load Table

MPW120 Load Table

MPW160 Load Table

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

Florida Building Code Approval

Solar Reflectance & Thermal Emittance Chart

ATAS Manufacturer Qualification Statement
