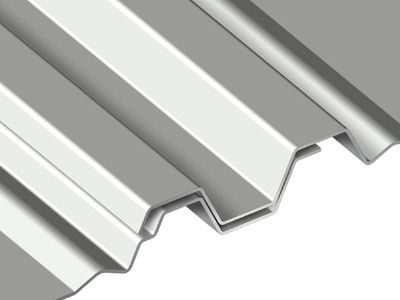

Grand V

Grand V Panels provide a unique solution to the metal roofing and metal siding needs of today. The panels are produced from high-quality materials that meet the requirements of the MCA Certification Program for Metal Roofing Panels. Panels are designed for use over solid substrates or open framing with support members spaced a maximum of 24 inches on center. Typical applications include walls, fascias, mansards, equipment screens and some limited roofing with a minimum slope of 3:12.

PRODUCT INFO

SKU:

BWV320

Material:

.032 aluminum

Panel Coverage:

32″

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Height:

½”

Texture:

Smooth

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Minimum Slope:

3:12

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format

DWG File Format

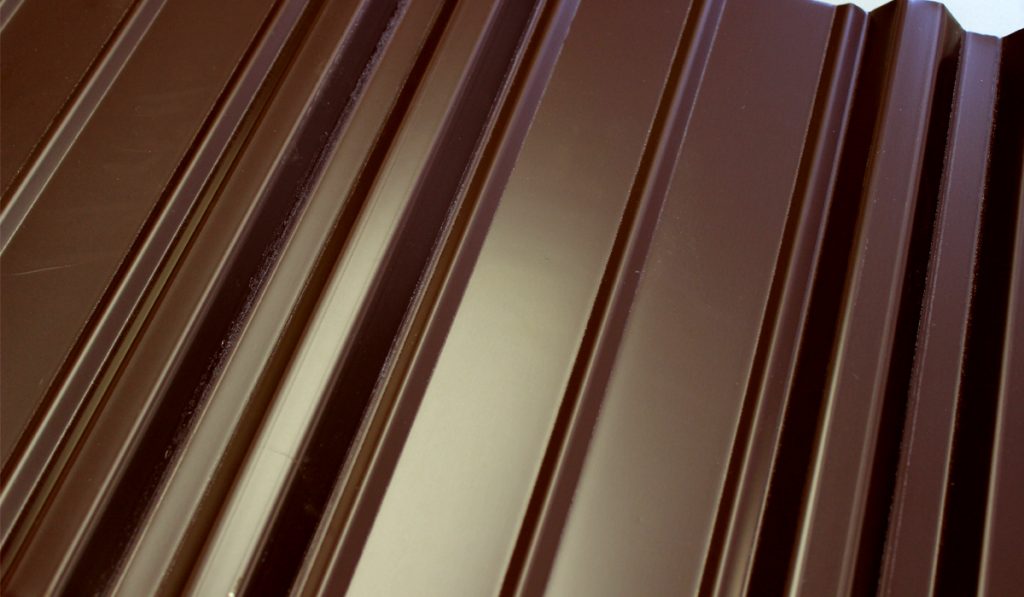

GALLERY

DOCUMENTS

Grand V Product Brochure

Grand V Spec Data Sheet

ATAS Color Chart

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

SRI Values Chart

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.

Color Chart Color & Material Availability
