Corrugated Panel

The Corrugated Panel is a traditional, economical roof or wall panel. It is installed horizontally or vertically with exposed fasteners. The panel is available in smooth or stucco embossed texture, depending on material. This panel can be installed on a solid substrate or open framing, making it a versatile roof panel for your next project.

PRODUCT INFO

SKU:

BWC374

Material:

.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
16, 20 oz. copper*^
24, 22*, 20* ga. 55% Al-Zn alloy coated steel with acrylic coating
0.8, 1.0, 1.2 mm zinc*^

Panel Coverage:

37¼”

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Height:

⅞”

Texture:

Smooth
Stucco Embossed

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Minimum Slope:

3:12

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

^Inquire for available widths

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format

DWG File Format

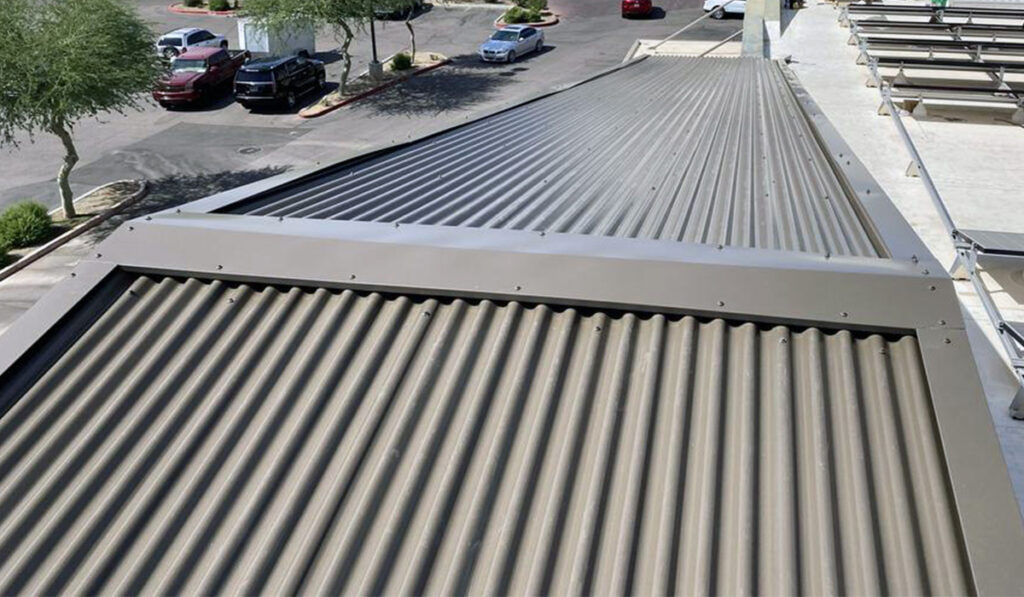

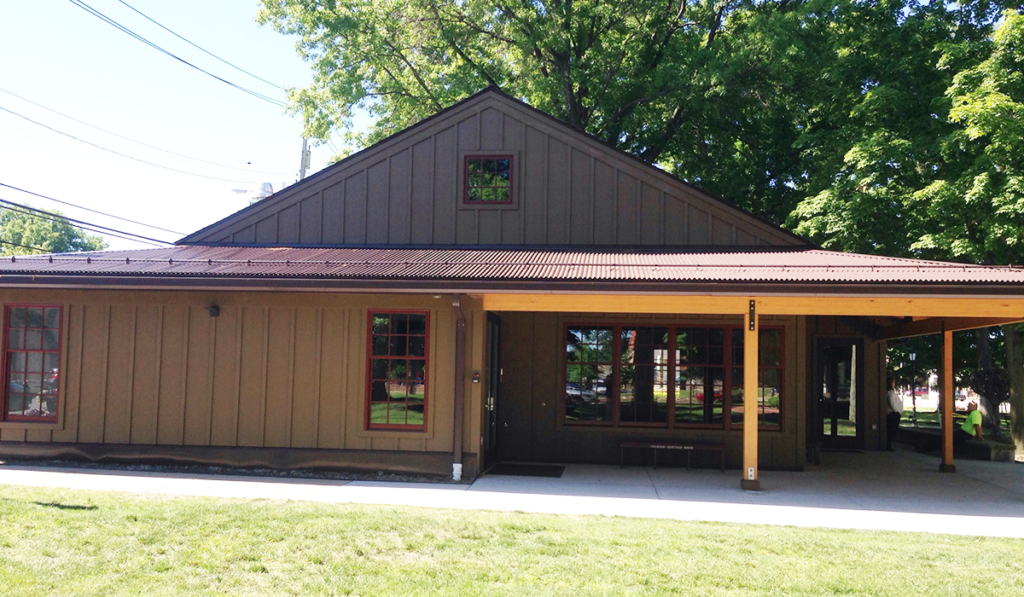

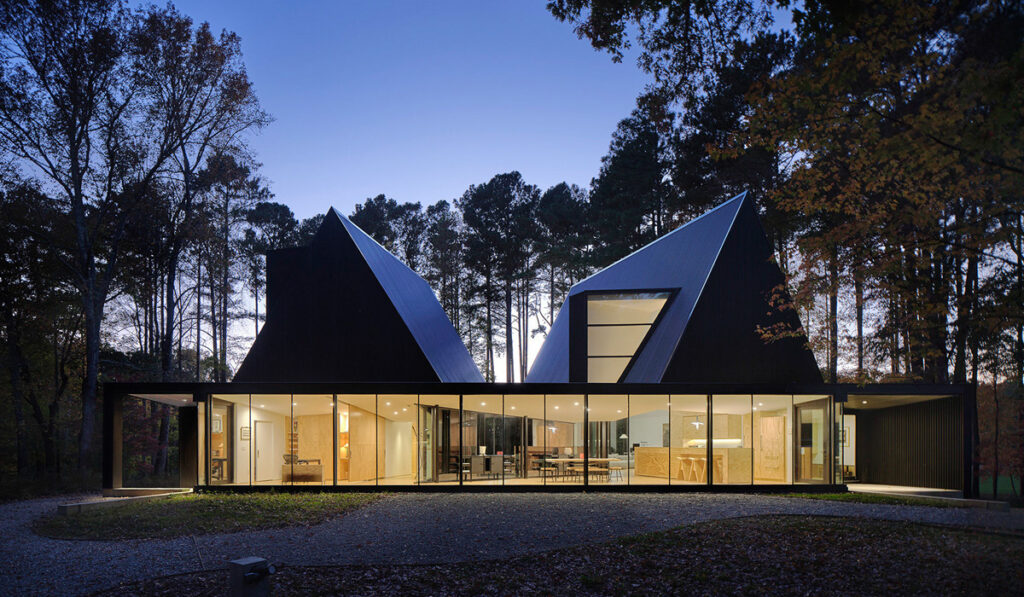

GALLERY

DOCUMENTS

Corrugated Panel Product Brochure

Corrugated Panel Spec Data Sheet

ATAS Color Chart

ATAS Aluminum Recycled Contents

Finish Warranty

ATAS Steel Recycled Contents

LEED v4

SRI Values Chart

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.
