Advanta Shingle

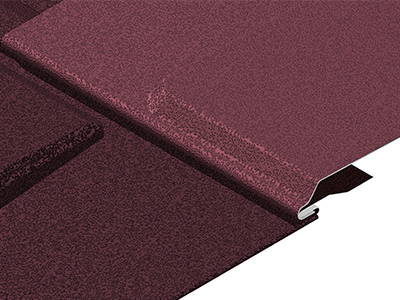

Advanta^®, a dimensional metal shingle, is easily installed horizontally from eave to ridge with concealed fasteners. The metal shingle has prepunched direct fastening points with a four-way interlock for weathertightness. It is lightweight, allowing for installation over an existing roof without the need for tear-off and disposal*. Typical applications for Advanta^® are roofs on either commercial or residential buildings. It also is suitable for walls and mansards.

*Subject to local codes

Florida Building Product Approval: FL 2905

Download Product Brochure

BIM Model

Download BIM File

Virtual Meeting

Request Meeting with Rep

PRODUCT INFO

SKU:

HAS300

Material:

29 ga. metallic coated steel

Shingle Size:

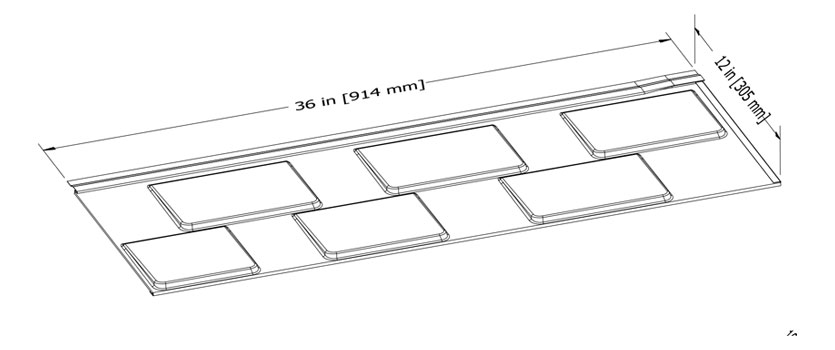

12” x 36”

Texture:

Stucco Embossed

Finish:

70% PVDF

8 Stock Colors:

Bone White, Char Brown, Forest Green, Mission Red, Rocky Grey, Redwood, Sierra Tan, Slate Grey
View Color Chart

9 Advanta Variegated Colors:

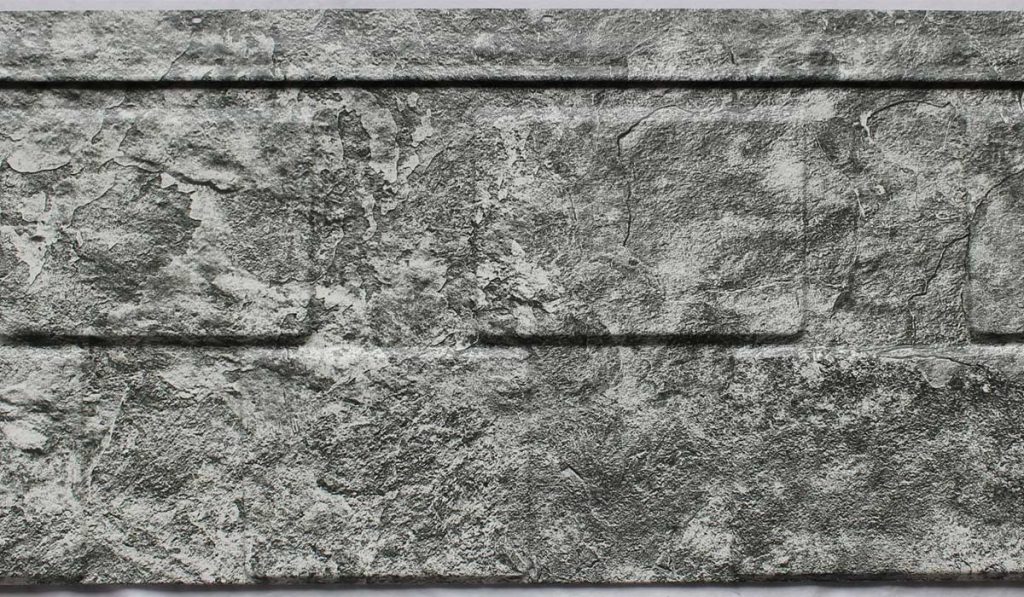

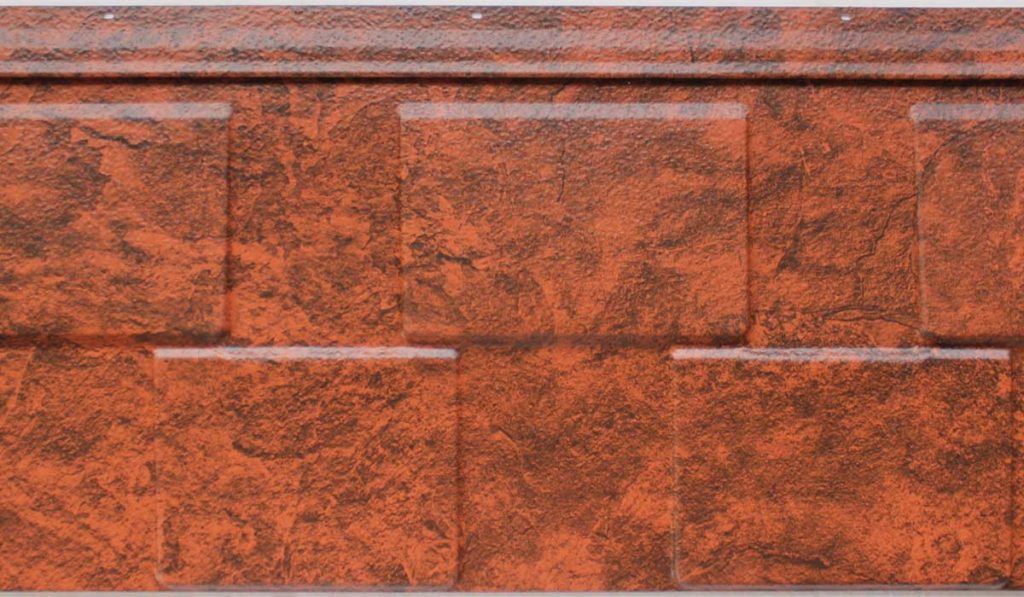

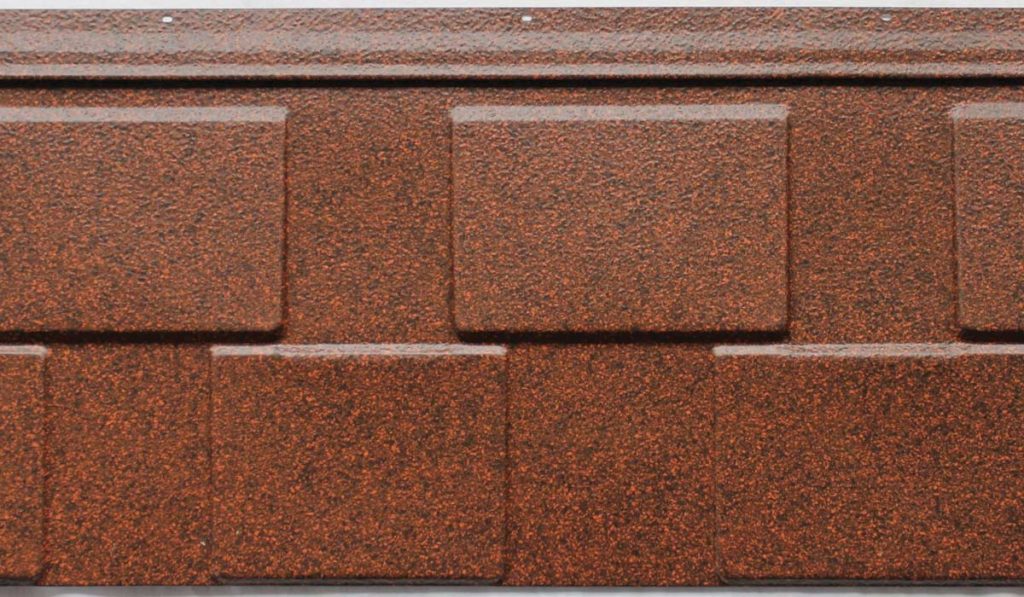

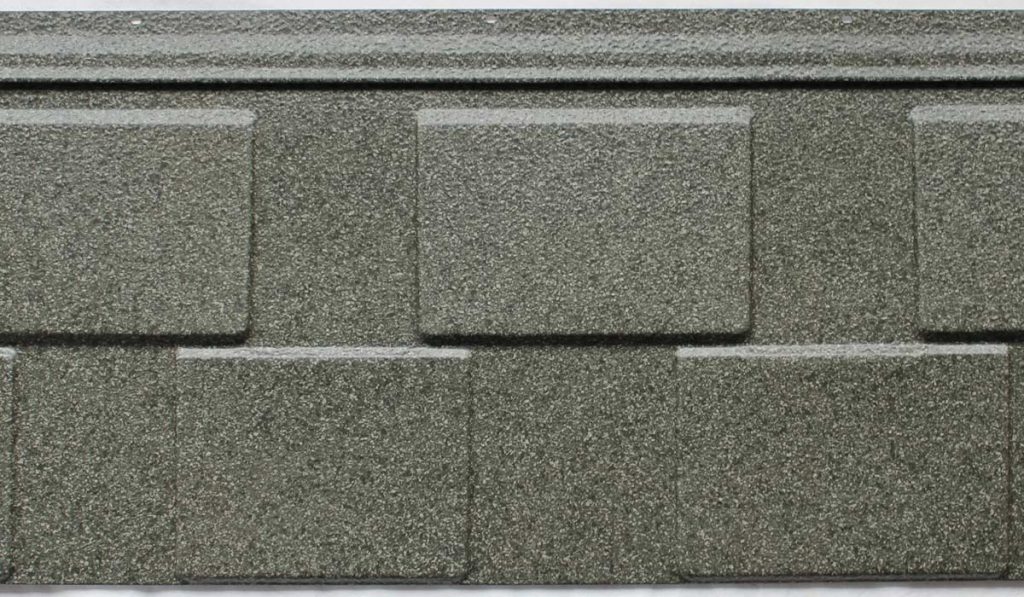

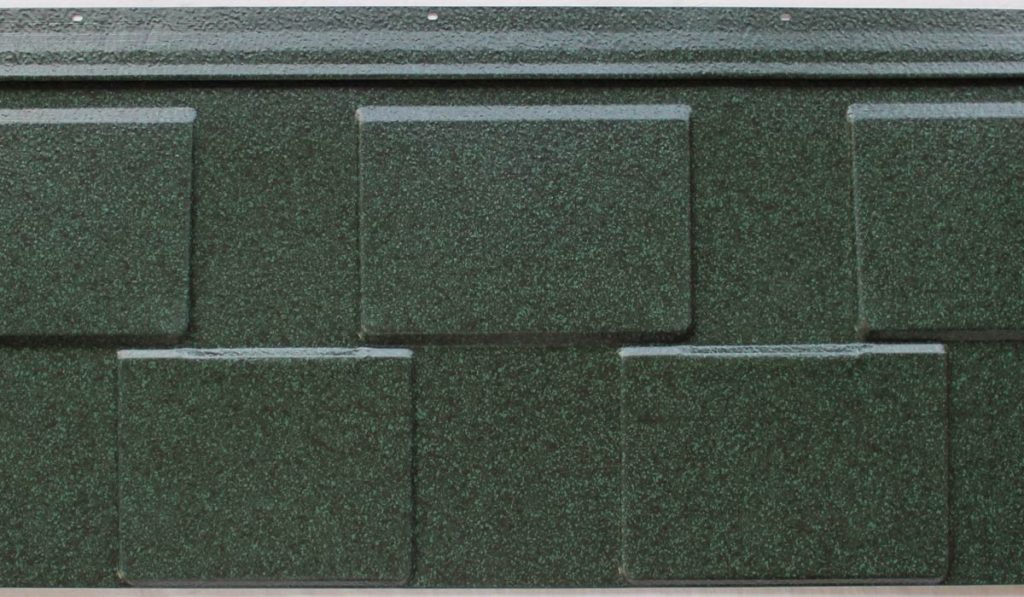

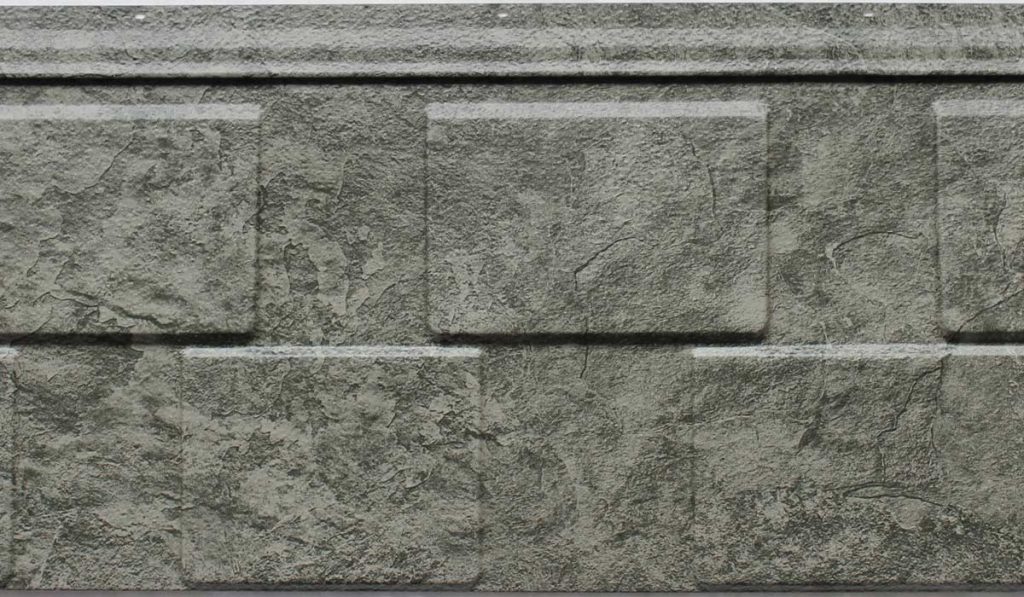

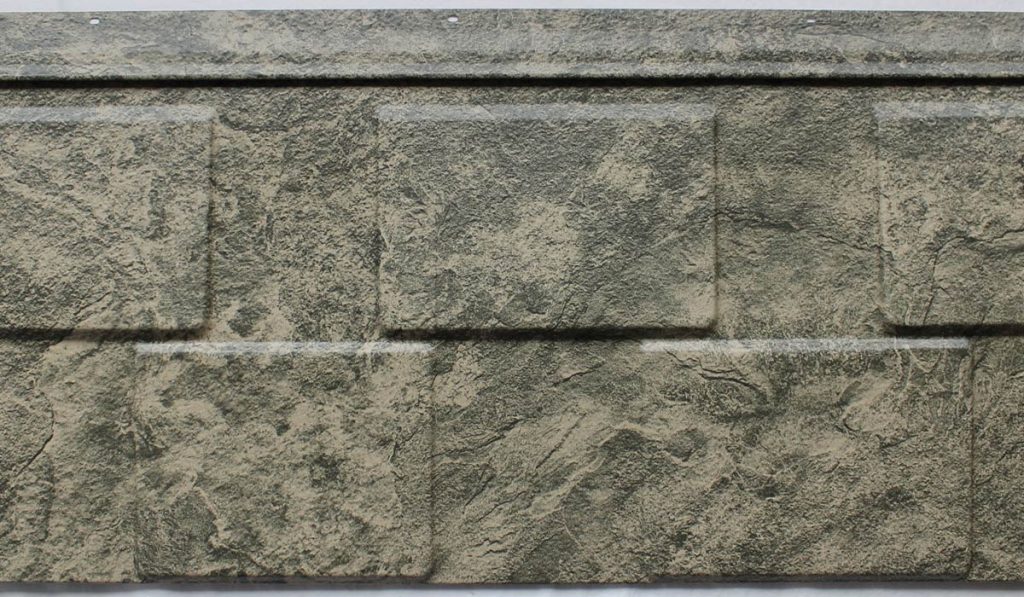

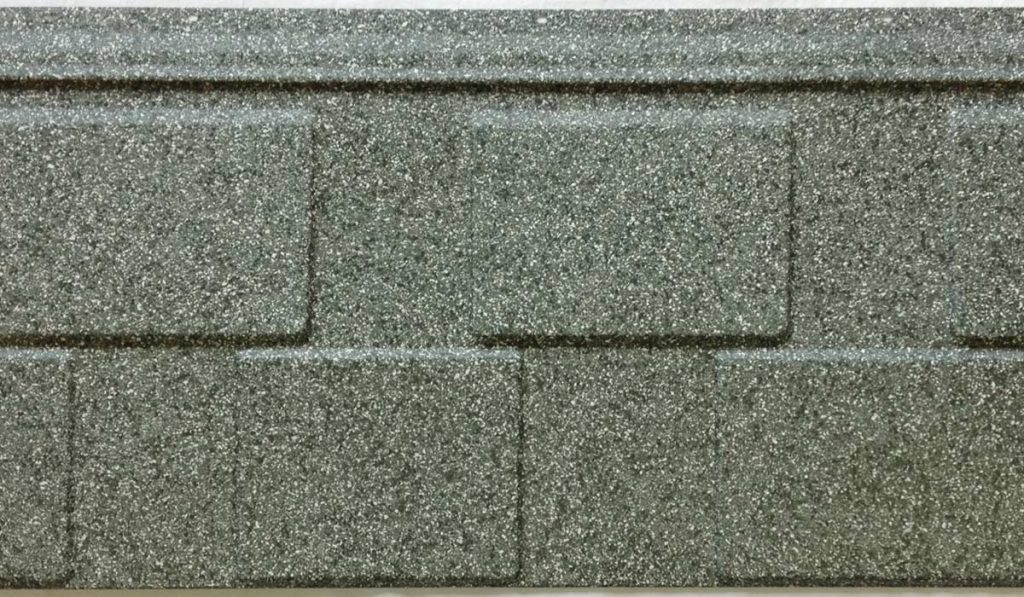

Asheland Slate, Baja Slate, Quarry Slate, Willow Slate, Beech Tree, Deep Granite, Rocky Cliff, Shaded Spruce, Weathered Stone
View Color Chart

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Fasteners:

Concealed fasteners

Minimum Slope:

3:12

Florida Building Product Approval:

FL 2905.1

MCA Certification:

0057ADVA

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format

DWG File Format

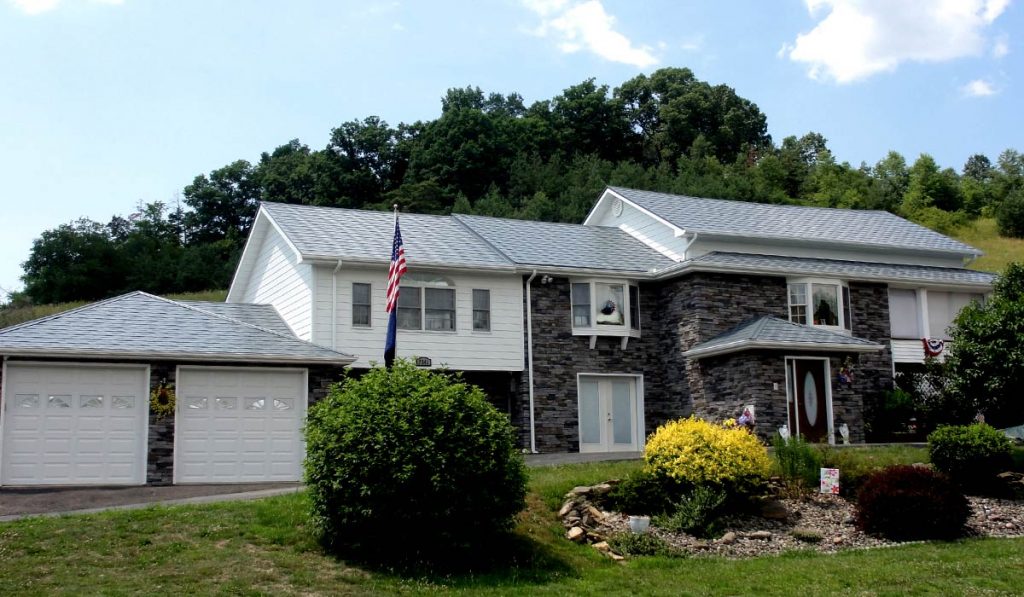

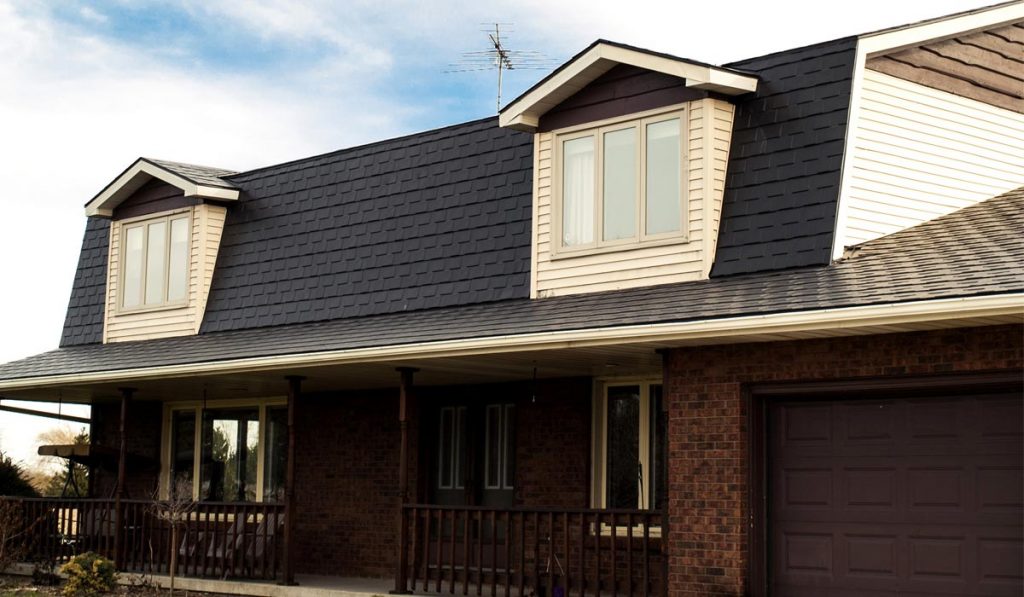

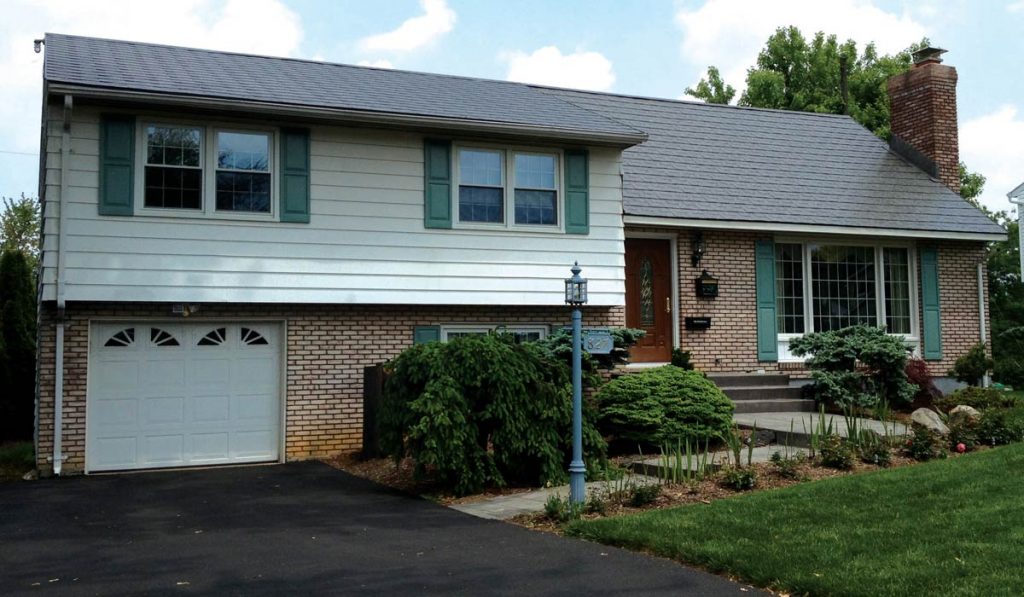

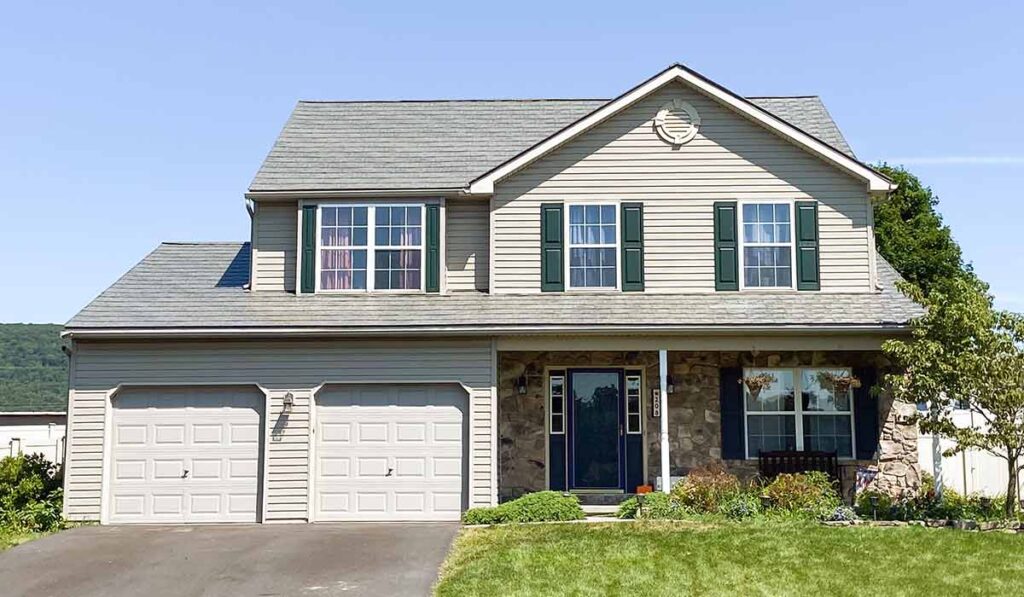

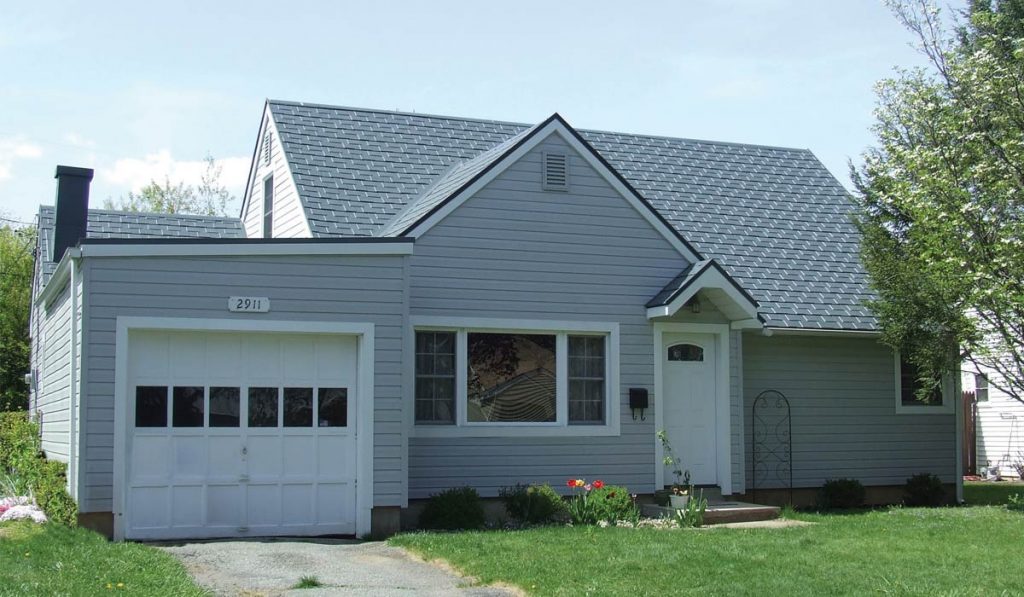

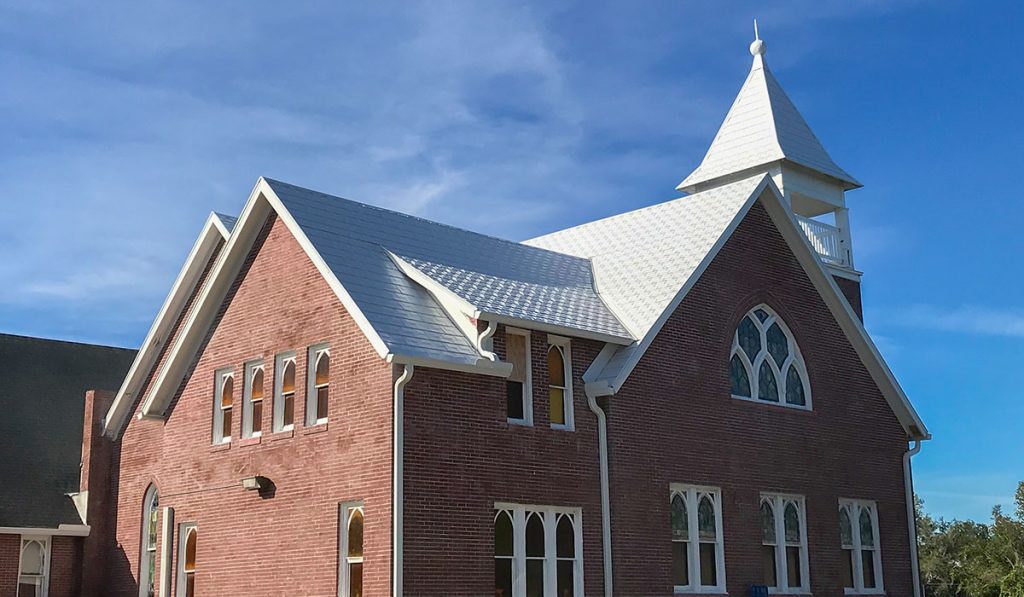

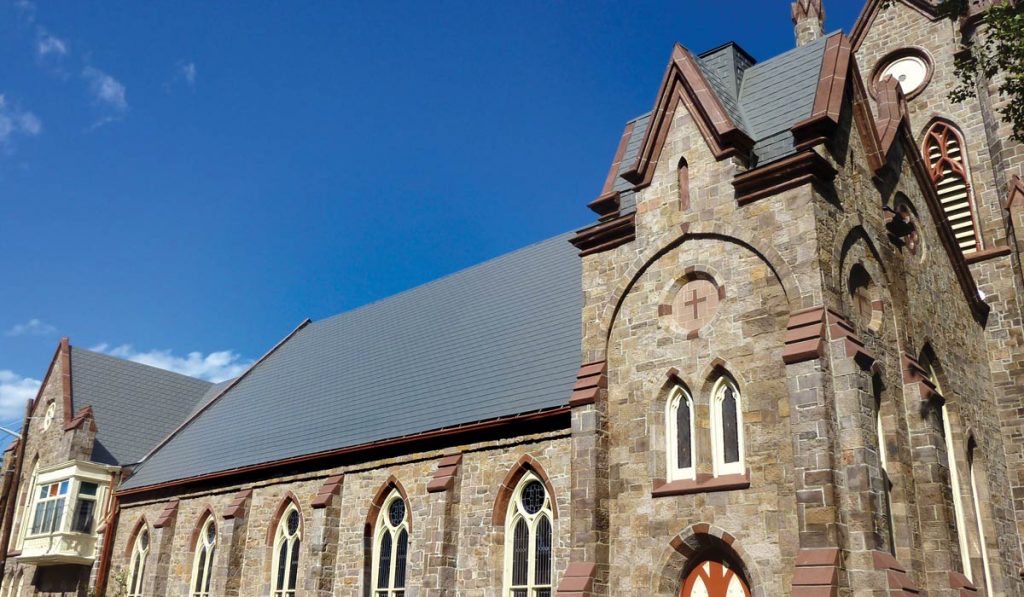

GALLERY

DOCUMENTS

Advanta Product Brochure

Advanta Spec Data Sheet

ATAS Color Chart

Advanta Estimating Sheet

Finish Warranty

LEED v4

ATAS Steel Recycled Contents

Florida Building Code Approval

SRI Values Chart

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.

Color Chart Color & Material Availability
