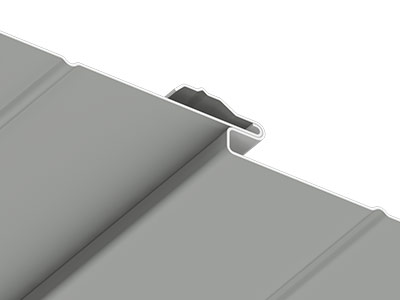

DWH Interlock
DWH Interlock
Design Wall | DSH, DWH

Panel Options:

DSH
DSH
DSH Interlock
DSH Interlock
DWH
DWH
DWH Interlock
DWH Interlock

The Design Wall™ System is a structural panel with optional louvered style venting.  The “board” panel has an upside of 2” that may extend in 1” increments. It may be installed horizontally or vertically. Typical applications for this panel are walls, soffits, fascia or equipment screens.

PRODUCT INFO
SKU:

DSH
DWH

Material:

.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22* ga. 55% Al-Zn alloy coated steel with acrylic coating
.8, 1.0 mm zinc* (DWH only)
16, 20 oz. copper*

Panel Coverage:

12”
(Stiffening ribs standard, specify without)

Minimum Panel Length:

3’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Height:

1¾”
1⅛”

Texture:

Smooth
Stucco Embossed
Wood Grain Embossed (DWH only)

Available:

Louvered/Vented

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format
DWG File Format
DOCUMENTS

Ceilling & Soffits Product Brochure

Design Wall Spec Data Sheet

ATAS Color Chart

Design Wall DSF120 Load Table

Design Wall DWF120 Load Table

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

Solar Reflectance & Thermal Emittance Chart

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.
