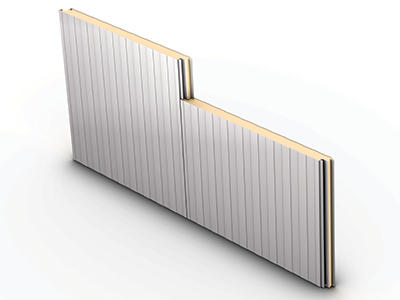

Isoleren TE

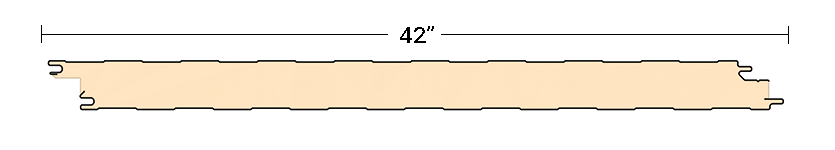

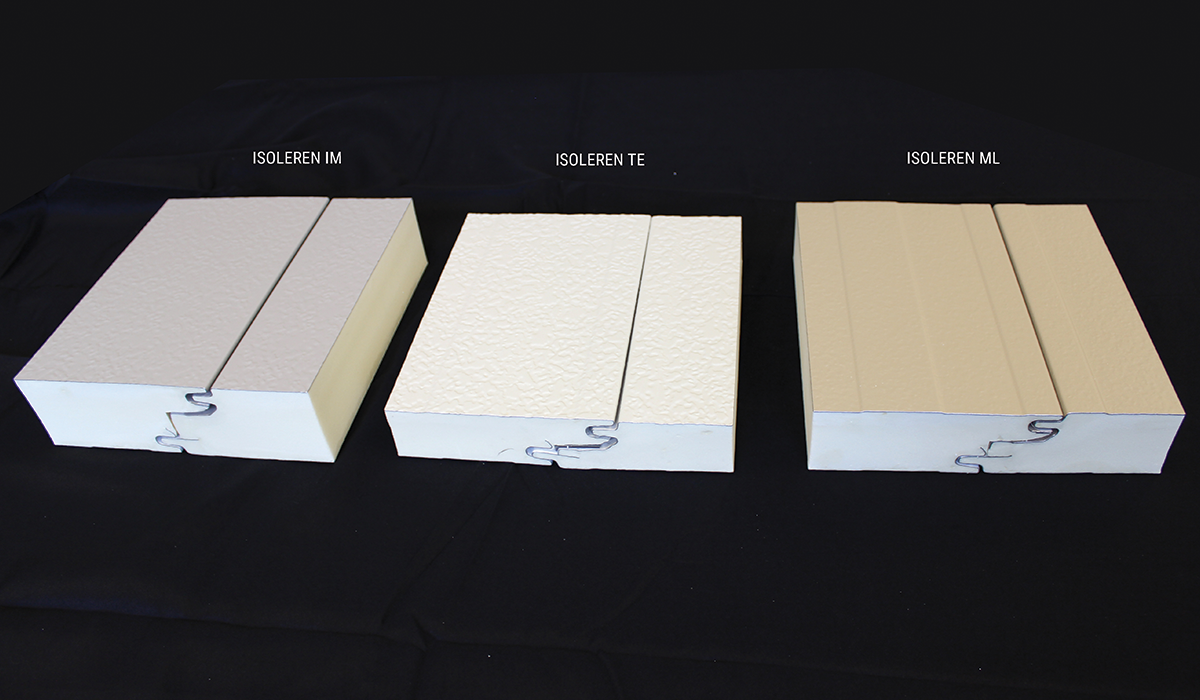

Panel Details:

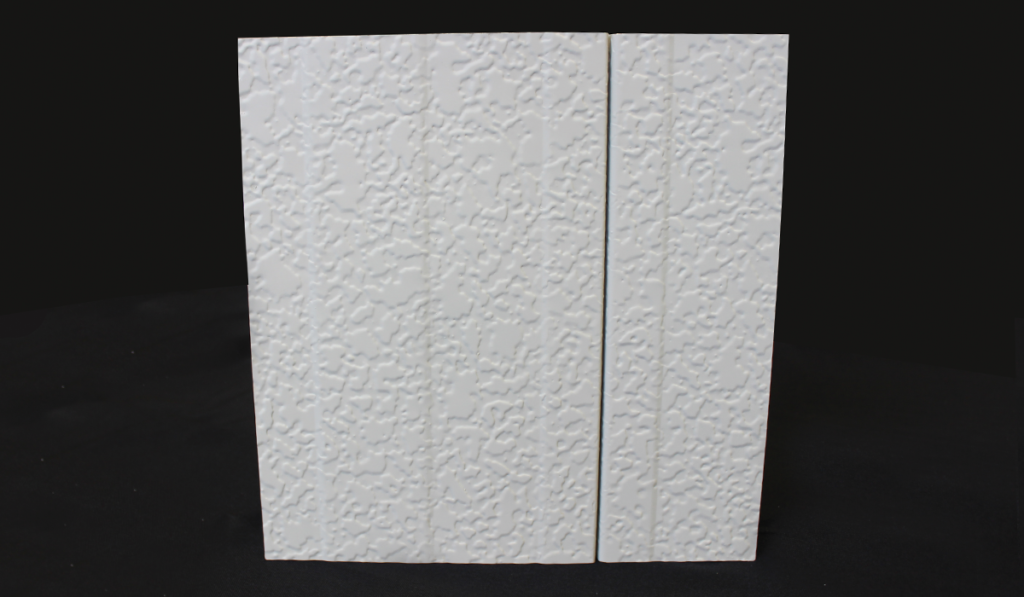

Panel
Panel

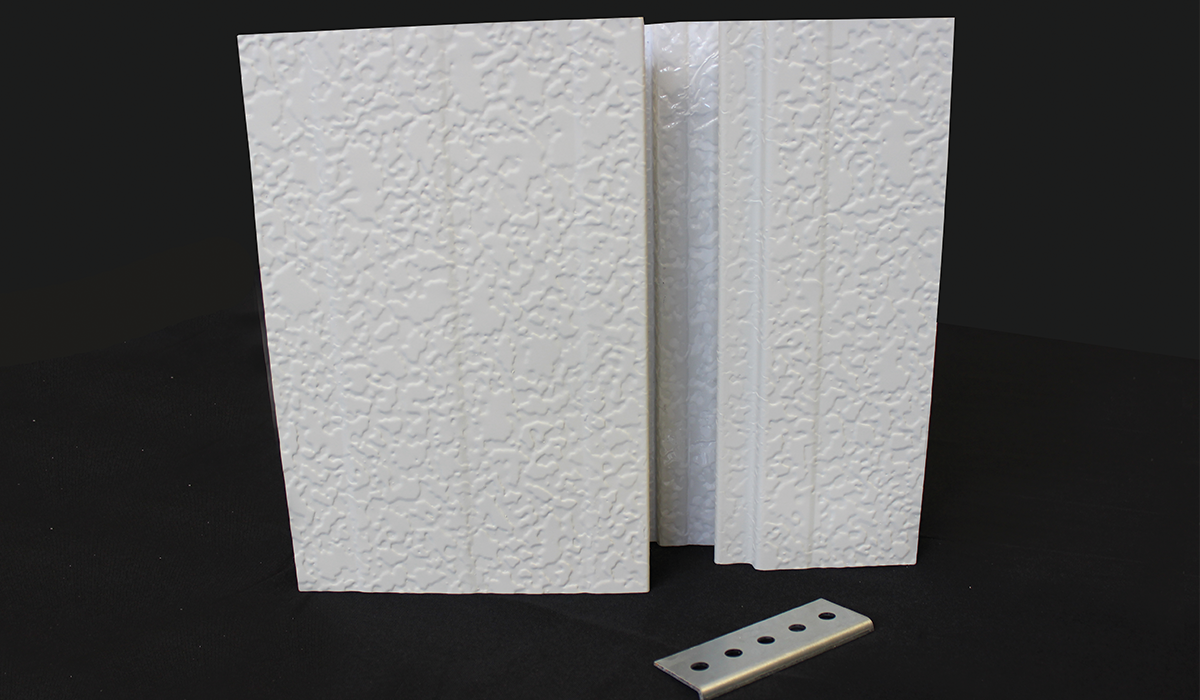

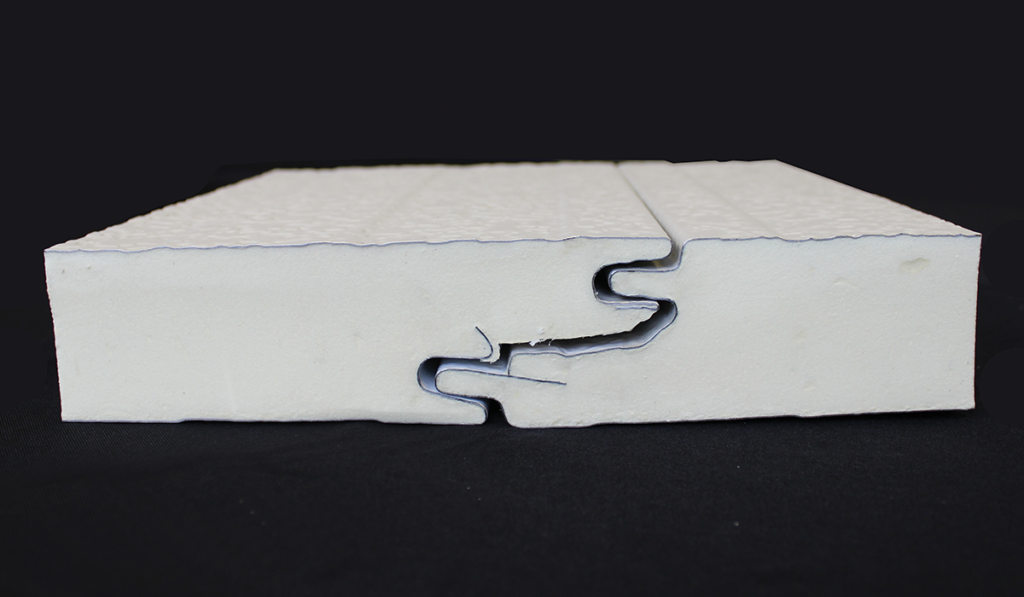

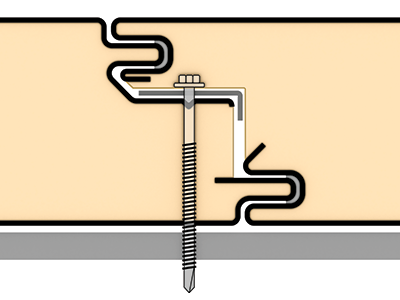

Interlock
Interlock
Sidelap
Sidelap

Isoleren TE combines the popular Isoleren ML profile with an enhanced troweled embossed texture for a greater, more dramatic, richly textured appearance. It provides an excellent alternate for those who want both a warm, natural texture and a traditional corrugated ribbed profile.







PRODUCT INFO
SKU:

ITE422
ITE421
ITE423
ITE424
ITE425
ITE426

Exterior Profile:

Isoleren TE

Interior Profile:

Isoleren ML

Exterior Gauge:

26
24

Interior Gauge:

26
24
22

Substrate:

55% Al-Zn Alloy Coated Steel with Acrylic Coating
Metallic Coated Steel
Stainless Steel

Exterior Finish:

70% PVDF
Low Gloss
Siliconized Polyester

Interior Finish:

Polyester
Siliconized Polyester
70% PVDF
Standard Gloss (USDA White)
Plastisol
Stainless

Panel Coverage:

42″

Thickness (A):

2″
2 ½”
3″
4″
5″
6″

Exterior Texture:

Troweled Embossed

Interior Texture:

Smooth
Stucco Embossed

Core:

Continuously poured-in-place, polyisocyanurate, insulating foam

R-Value:

R-8 per inch of thickness (nominal)

Standard Lengths:

8′-0″ to 53′-0″

Note:

All information subject to change without notice

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

Aluminum Extrusion and Non-standard Details are available upon request.  Please contact your local product representative for more information.

PDF File Format - Vertical Wall - Sheet Metal Flashing Details
PDF File Format - Horizontal Wall - Sheet Metal Flashing Details
DWG File Format - Vertical Wall - Sheet Metal Flashing Details
DWG File Format - Horizontal Wall - Sheet Metal Flashing Details
GALLERY
DOCUMENTS

Isoleren Insulated Metal Panels Product Brochure

Isoleren TE Spec Data Sheet

Isoleren TE Tech Data Sheet

Isoleren Color Chart

Isoleren Installation Guide

Isoleren Allowable Uniform Loads Table

Isoleren Ceiling Tee Allowable Loads

Isoleren R-Values

Isoleren Ceiling Clip Allowable Loads

Isoleren Testing Insulated Metal Walls

Isoleren Weight Chart

Isoleren Partition Span Table

Isoleren Insulated Metal Wall Panel Guide Specification - PDF Format

Isoleren Insulated Metal Wall Panel Guide Specification - Word Doc

Isoleren Handling and Maintenance Guide

LEED v4

ATAS Manufacturer Qualification Statement
