Isoleren SL

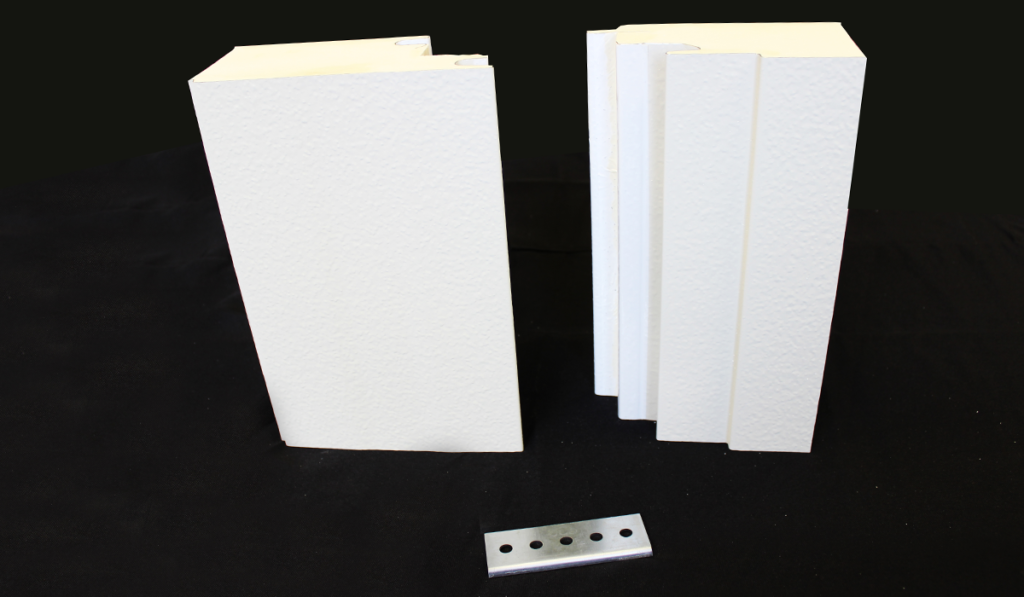

ATAS’ most dramatic, fluted insulated metal panel which provides a deep, rich, shadowing appearance that enhances the profile’s bold lines. Isoleren^® SL is an excellent choice when detail is a necessity.

PRODUCT INFO

SKU:

ISL422
ISL421
ISL423
ISL424
ISL425
ISL426

Exterior Profile:

Isoleren SL

Interior Profile:

Isoleren ML

Exterior Gauge:

26
24
22

Interior Gauge:

26
24
22

Substrate:

55% Al-Zn Alloy Coated Steel with Acrylic Coating
Metallic Coated Steel
Stainless Steel

Exterior Finish:

70% PVDF
Low Gloss
Siliconized Polyester

Interior Finish:

Polyester
Siliconized Polyester
70% PVDF
Standard Gloss (USDA White)
Plastisol
Stainless

Panel Coverage:

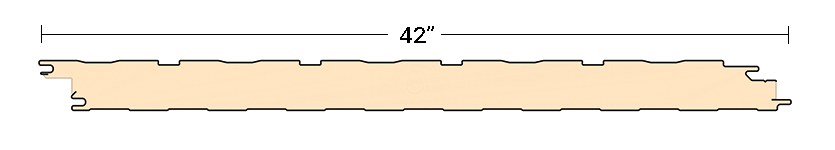

42″

Thickness (A):

2″
2.5″
3″
4″
5″
6″

Exterior Texture:

Smooth
Stucco Embossed

Interior Texture:

Smooth
Embossed

Core:

Continuously poured-in-place, polyisocyanurate, insulating foam

R-Value:

R-8 per inch of thickness (nominal)

Standard Lengths:

8′-0″ to 53′-0″

Note:

All information subject to change without notice

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

Aluminum Extrusion and Non-standard Details are available upon request. Please contact your local product representative for more information.

PDF File Format - Vertical Wall - Sheet Metal Flashing Details

PDF File Format - Horizontal Wall - Sheet Metal Flashing Details

DWG File Format - Vertical Wall - Sheet Metal Flashing Details

DWG File Format - Horizontal Wall - Sheet Metal Flashing Details

GALLERY

DOCUMENTS

Isoleren Insulated Metal Panel Product Brochure

Isoleren SL Spec Data Sheet

Isoleren SL Tech Data Sheet

Isoleren Color Chart

Isoleren Installation Guide

Isoleren Allowable Uniform Loads

Isoleren Ceiling Tee Allowable Loads

Isoleren R-Values

Isoleren Ceiling Clip Allowable Loads

Isoleren Testing Insulated Metal Walls

Isoleren Insulated Metal Wall Panel Guide Specification - PDF Format

Isoleren Insulated Metal Wall Panel Guide Specification - Word Doc

Isoleren Handling and Maintenance

Isoleren Panel Weight Chart

Isoleren Partition Span Table

LEED v4

ATAS Manufacturer Qualification Statement
