Insulated Barrier Back Up Wall System

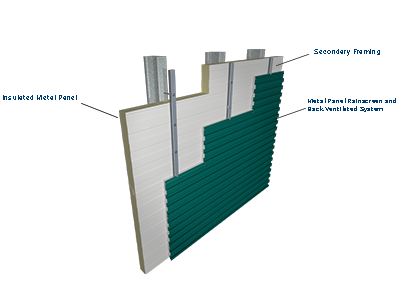

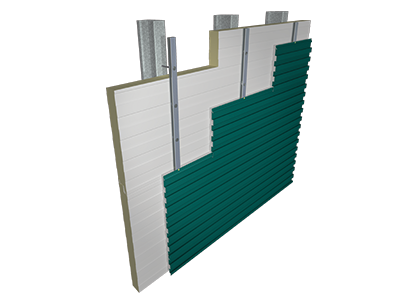

The Isoleren Insulated Metal Panel Barrier Back Up Wall System provides an alternate all-in-one barrier wall solution vs a traditional multi-component wall system. This system incorporates a single component insulated metal wall panel that supports a secondary metal rainscreen system to meet a wide variety of architectural needs. The Insulated Metal Barrier Back Up panel is thermally efficient and provides the ideal air, vapor, and water barrier that can help reduce construction time by allowing buildings to be “dried-in” faster. To learn more about the Isoleren Insulated Metal Panel Barrier Back Up Wall System contact your local product representative.

Product Info
SKU:

IML422
IML421
IML423
IML424
IML425
IML426

Exterior Profile:

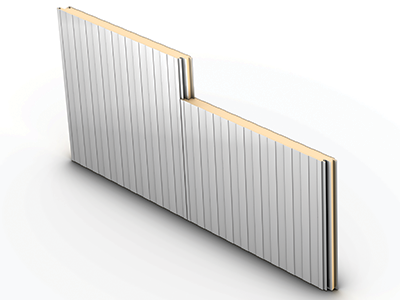

Isoleren ML

Interior Profile:

Isoleren ML

Exterior Gauge:

26
24
22

Interior Gauge:

26
24
22

Substrate:

55% Al-Zn Alloy Coated Steel with Acrylic Coating
G90 Galvanized
Stainless Steel

Exterior Finish:

Polyester
Siliconized Polyester
70% PVDF
Standard Gloss (USDA White)
Plastisol
Stainless

Interior Finish:

Polyester
Siliconized Polyester
70% PVDF
Standard Gloss (USDA White)
Plastisol
Stainless

Panel Coverage:

42″

Thickness (A):

2″
2.5″
3″
4″
5″
6″

Exterior Texture:

Smooth
Embossed

Interior Texture:

Smooth
Embossed

Core:

Continuously poured-in-place, polyisocyanurate, insulating foam

R-Value:

R-8 per inch of thickness (nominal)

Standard Lengths:

8′-0″ to 53′-0″

Note:

All information subject to change without notice

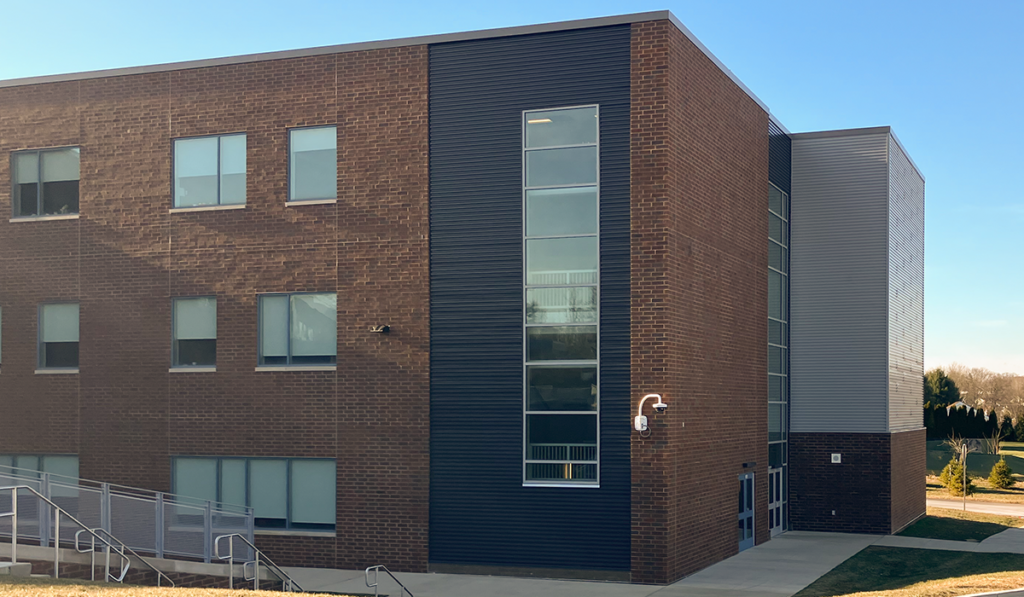

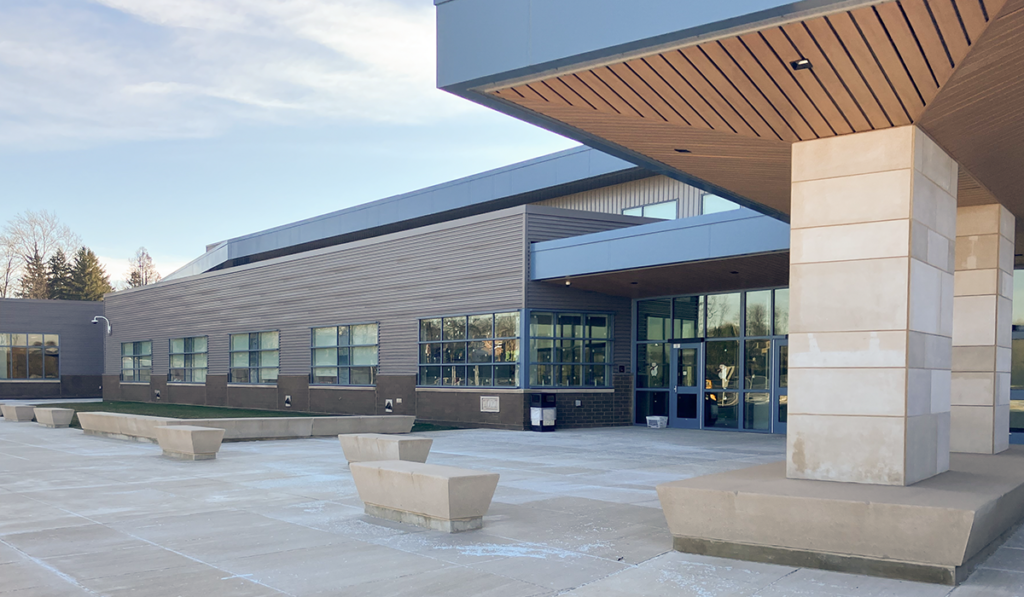

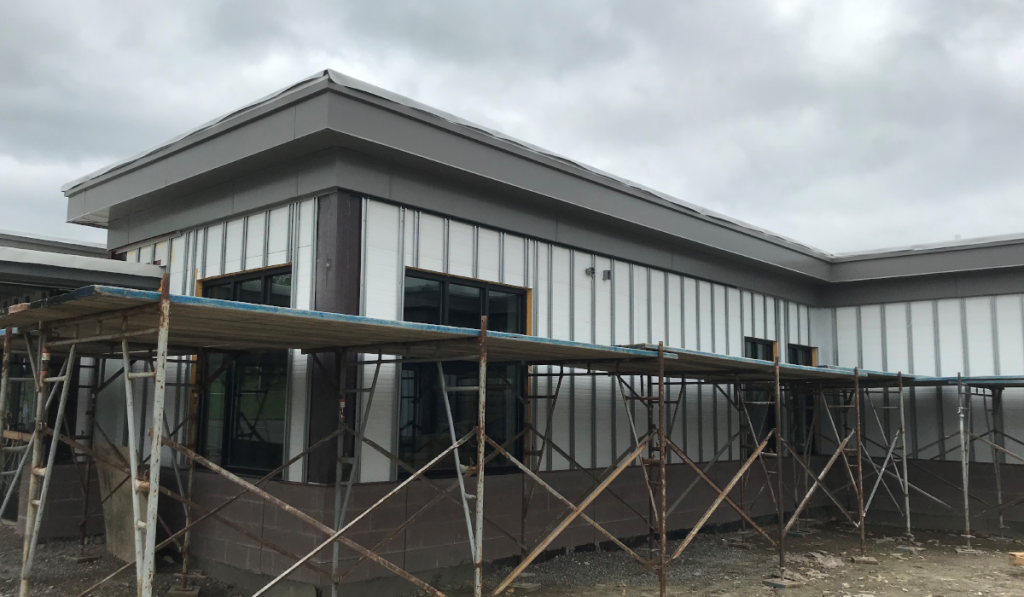

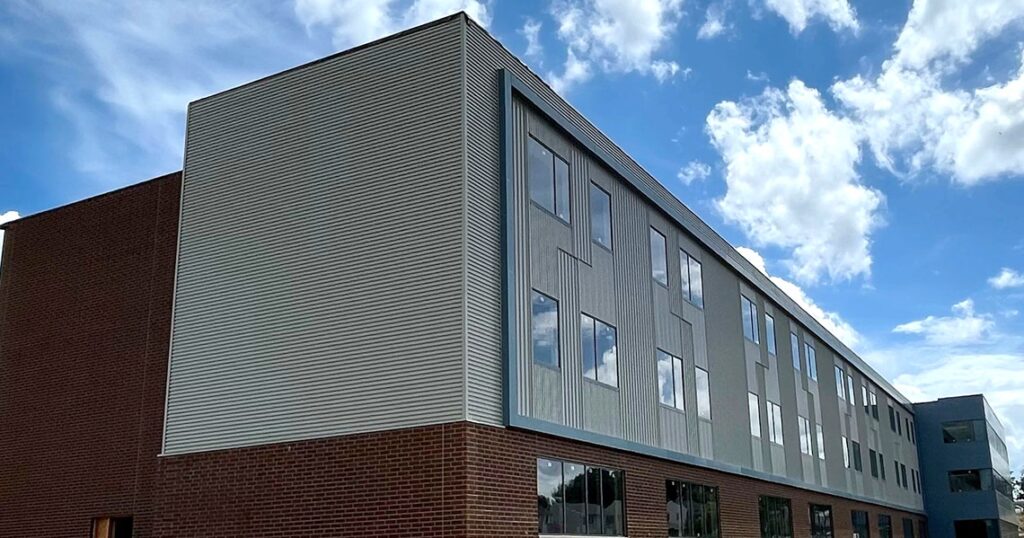

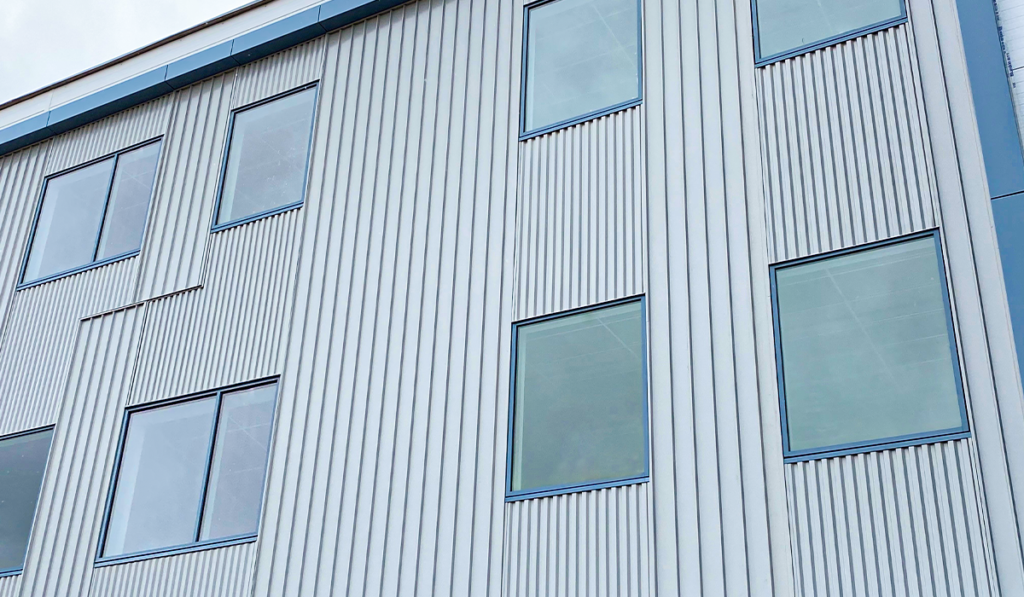

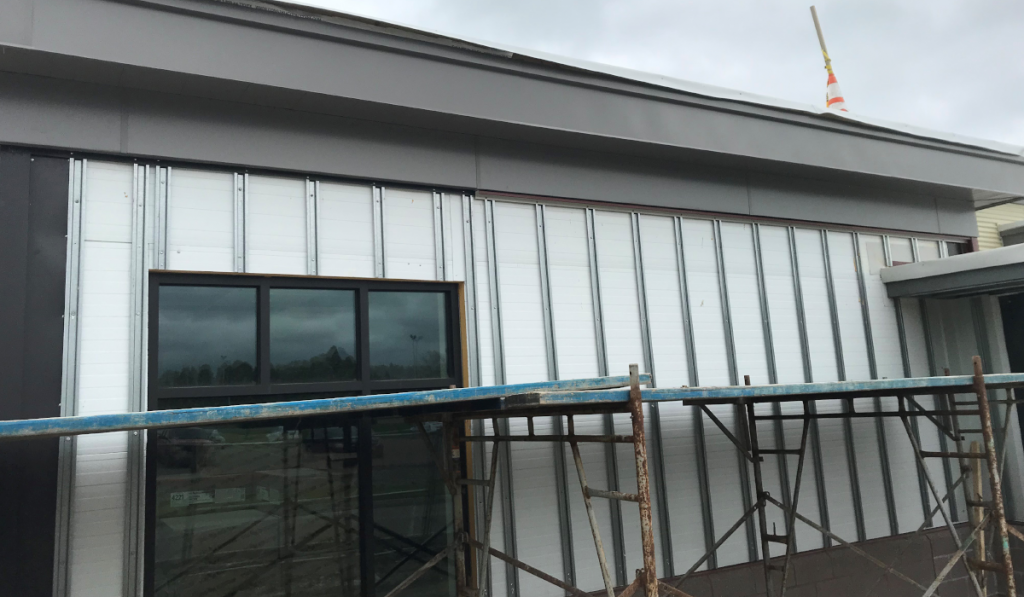

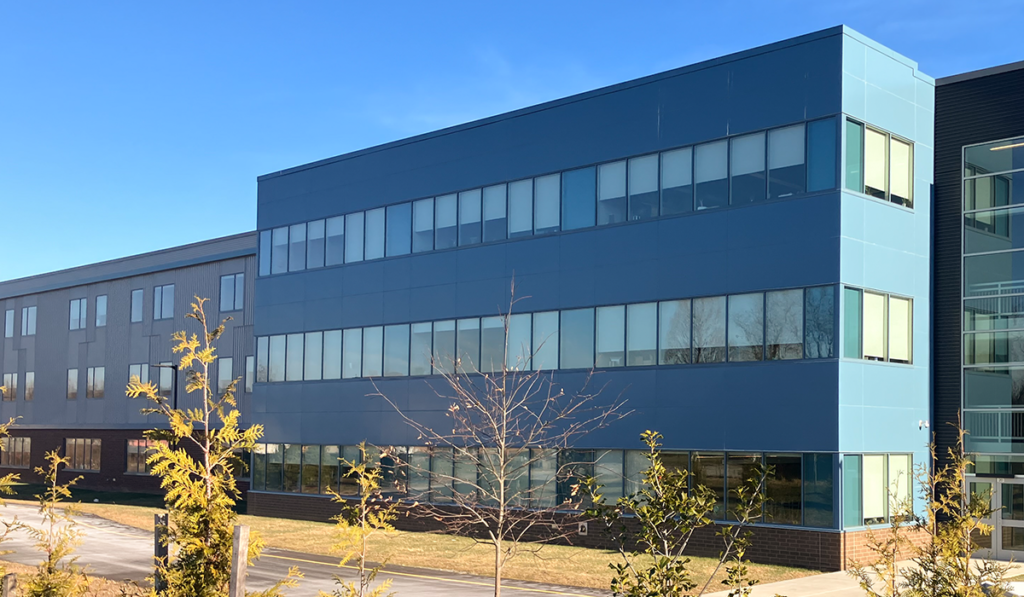

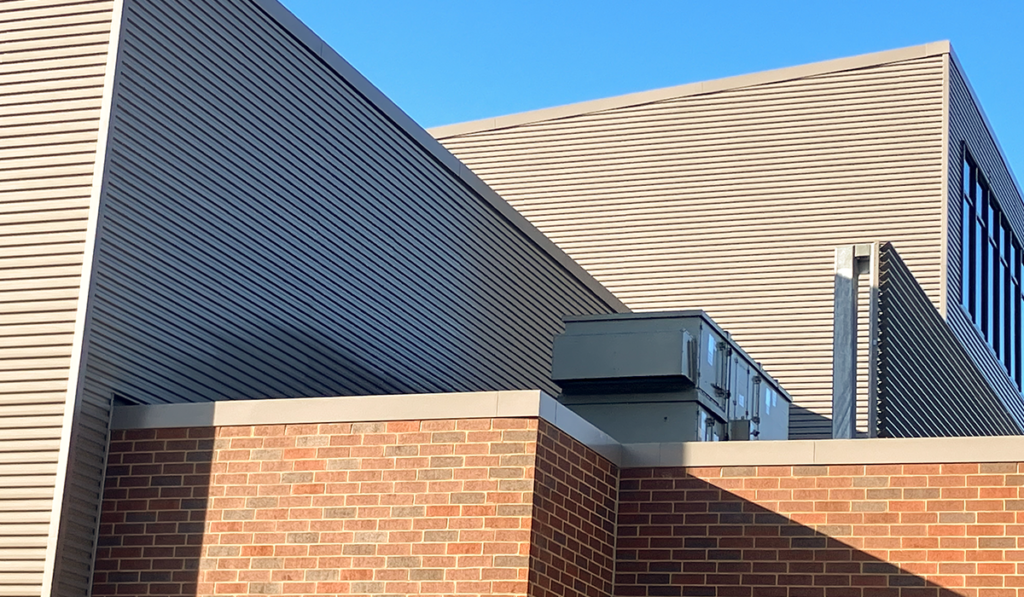

Gallery
