SterraCore Panels
April 24, 2020

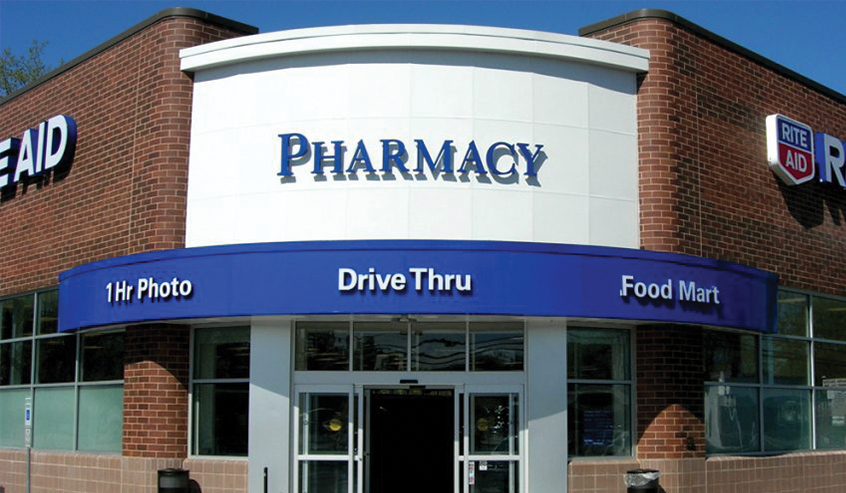

SterraCore™ metal composite material panels provide durable, eye-catching fascias, soffits, canopies, and decorative towers for retail, schools, hospitals and high profile commercial projects.
Panel Coverage
- 48” x 96”
- 48” x 120”
- 48” x 144”
- Custom sizes available
- Subject to minimum quantities and extended lead time
- 60” x 96”
- 60” x 120”
- 60” x 144”
Panel Thickness
- 6 mm
Product Information
- Over 40 stock colors
- Clear Matte and Extra Dark Bronze

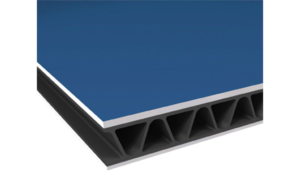

- .032 aluminum exterior skin
- Smooth or embossed
Multifunctional Role
- SterraCore panels are used as aesthetic coverings for the exterior wall portion of a building envelope
- Overall building envelope system does the following:
- Manage moisture flow (liquid water and water vapor) through the exterior wall
- Minimize the impact of exterior air temperature on interior conditioned space
- Retain most of the building-generated heat or conditioned air
- Control the spread of fire across the exterior
Common Applications
- Facias
- Soffits
- Canopies
- Decorative towers for
- Retail
- Schools
- Hospitals
- High profile commercial projects
*Fabricated by others
