Perimeter Edge: Coping

With three different copings to choose from, you are sure to find the proper system for your needs.

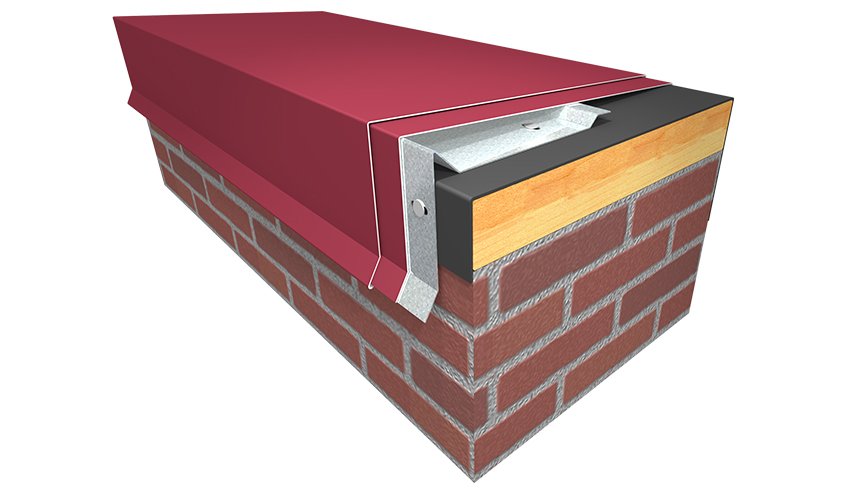

Continuous Cleat Coping System:

  • Most economical coping solution
  • Standard 22 gauge continuous cleat
  • Pre-punched and slotted fastener holes
  • Pre-packaged bill of material covers 12 lineal feet of parapet wall
  • Testing available for walls up to 24 inches wide
  • Tested in accordance with ES-1
  • Continuous Cleat Coping Specification Sheet (ordering guide)

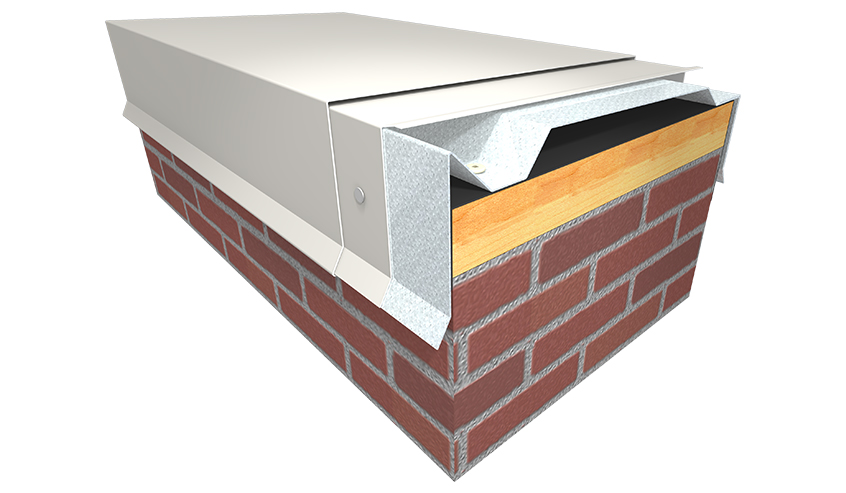

Rapid-Lok Coping System:

  • Most widely used coping system
  • Innovative splice design channels water back onto the roof
  • Standard 20 gauge cleat with reinforcing back angle for added strength
  • Standard wall widths from 4”-32”
  • Pre-punched fastener holes
  • Pre-packaged bill of material covers 12 lineal feet of parapet wall
  • 20-year warranty against blow-off due to winds up to 120 mph (Wind loads are different and are expressed in psf)
  • Tested in accordance to ES-1
  • Rapid-Lok Coping Specification Sheet (ordering guide)
  • Rapid-Lok Coping installation video

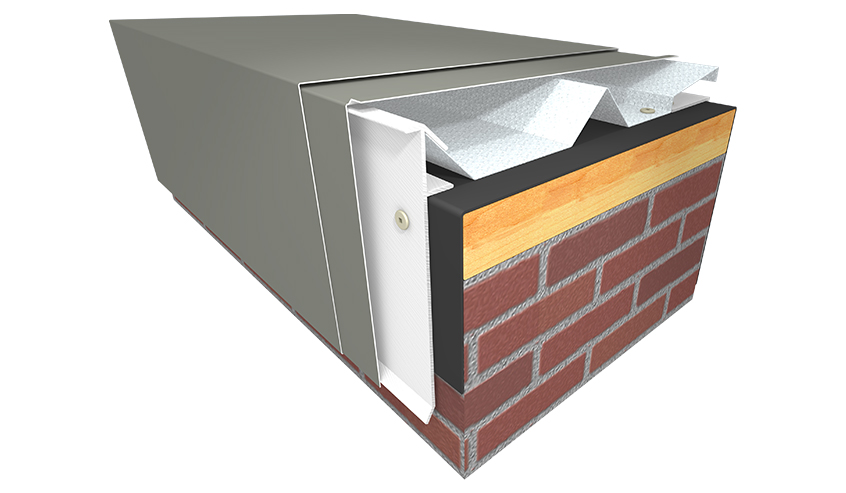

Rapid-Lok Ultra Coping System:

  • Premium coping system
  • Two continuous 1/8” extruded aluminum cleats (front and back)
  • Pre-packaged bill of material covers 12 lineal feet of parapet wall
  • No exposed fasteners
  • 30-year warranty against blow-off due to winds up to 150 mph (Wind loads are different and are expressed in psf)
  • Tested in accordance with ES-1
  • Rapid-Lok Ultra Coping Specification Sheet (ordering guide)
