Opaline Panels

January 28, 2022

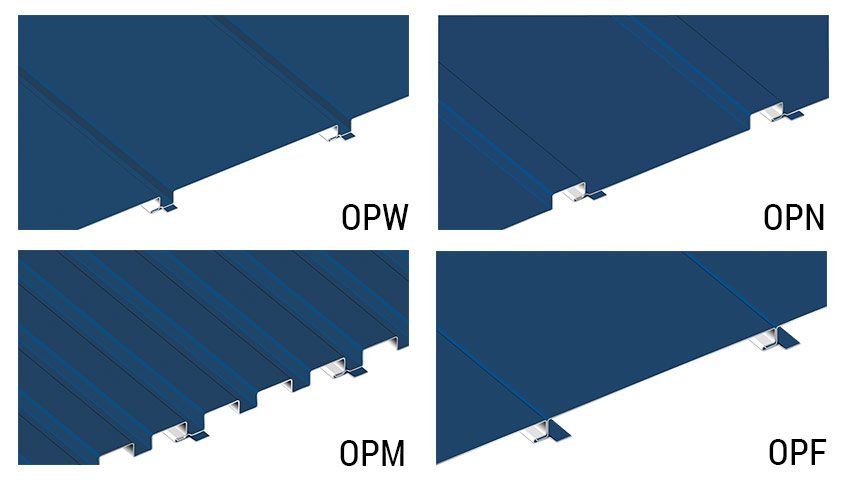

Opaline™ is a series of structural panels that can be installed on open framing (subject to design considerations). It installs as an enhanced tongue and groove design with improved mechanical fastener clearance. The fasteners are hidden by the adjacent panel. Panels are available with smooth or stucco embossed texture. Ideal applications for Opaline™ are walls, vertical fascias, soffits, ceilings or sign bands, alternatives for E.I.F.S., laminated or extruded panels. The panel can be used in lieu of wide face flashing details.

Product Information

  • Minimum panel length: 1’-6”
  • Aluminum: .032, .040
  • 24 ga metallic coated steel
  • Copper*: 16oz, 20 oz
  • Note: OPM available in .032 aluminum only
  • Over 40 stock colors in high performance paint systems
  • Clear Satin Anodized or Dark Bronze Anodized
  • Print coats (Woodland and Oxide Series)
  • Custom colors available based on quantity
    • Coil coating
    • Post painting (10’ length)
  • Smooth
  • Stucco embossed or wood grain embossed textures available

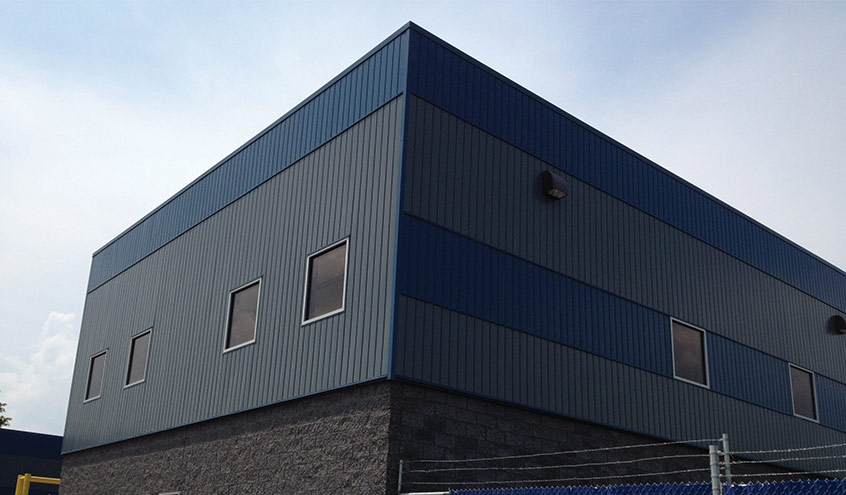

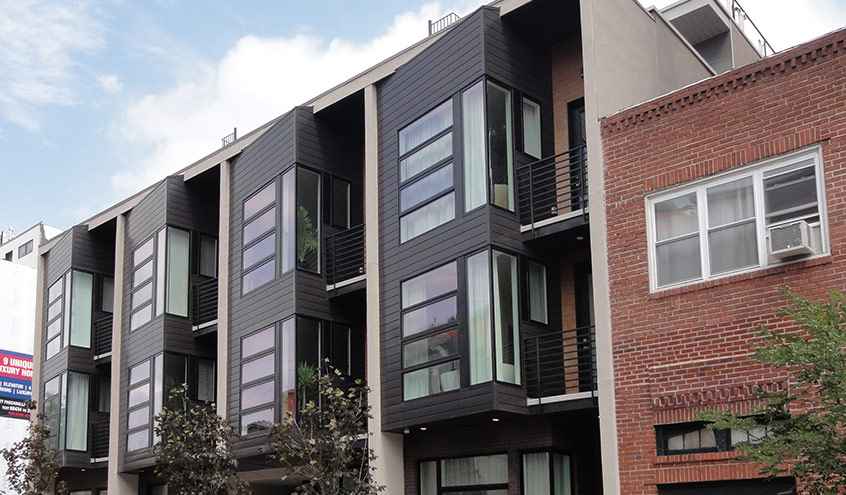

  • Vertical or horizontal installation

*Subject to minimum quantities and extended lead time. Inquire for material and panel coverage availability
