August 7, 2020

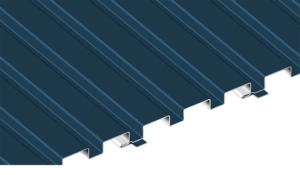

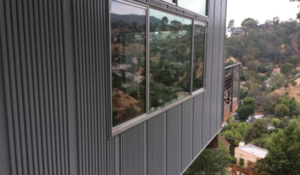

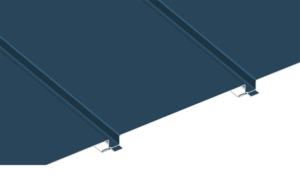

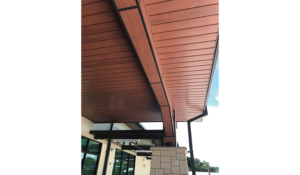

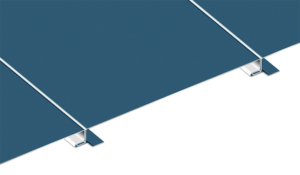

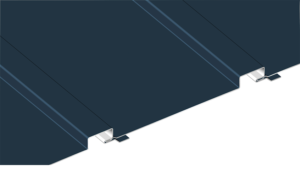

Opaline™ is a series of structural panels that can be installed on open framing (subject to design considerations). It installs as an enhanced tongue and groove design with improved mechanical fastener clearance. The fasteners are hidden by the adjacent panel. Panels are available with smooth or stucco embossed texture. Ideal applications for Opaline™ are walls, vertical fascias, soffits, ceilings or sign bands, and alternatives for E.I.F.S., laminated or extruded panels. The panel can be used in lieu of wide face flashing details. Material:

  • .032, .040 aluminum
  • 24 ga. metallic coated steel
  • 16, 20 oz. copper*


  • Smooth
  • Embossed


  • Over 35 stock colors
  • Laminates
  • Custom colors and finished available*
  • Clear Satin Anodized
  • Dark Bronze Anodized
  • Wood Grain Embossed

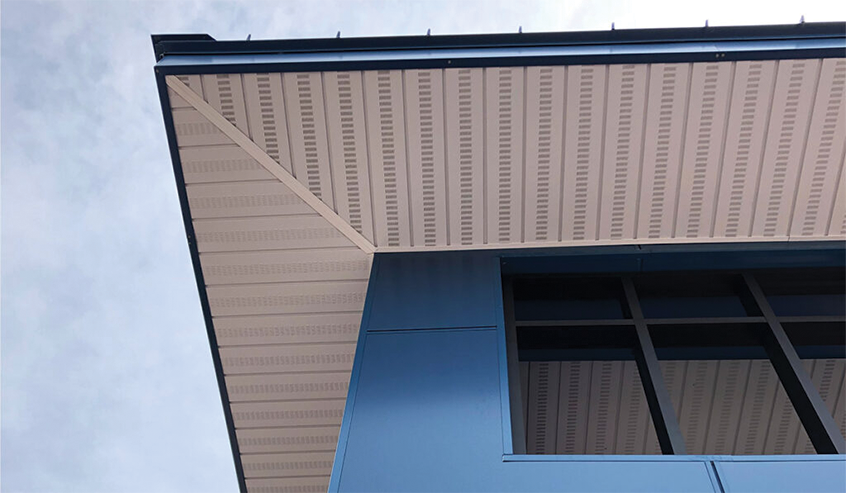

Perforations available:

  • Louvered
  • Vented
  • Micro perforations

*Subject to minimum quantities and extended lead times
