February 12, 2021

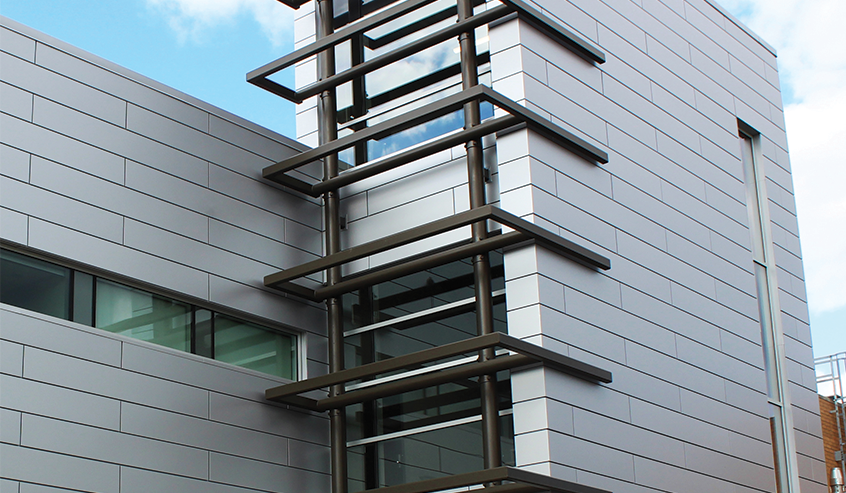

Omawall is a modular wall panel series designed to be used as a back ventilated or drained and back ventilated (D/BV) assembly in standard and custom size options. Omawall offers a unique dry joint interlocking system that allows for quick and easy installation without gaskets or metal splines. It also offers a Metal Composite Material (MCM) installed appearance in a non-combustible cladding option.

Product Information

  • Material: .063 aluminum

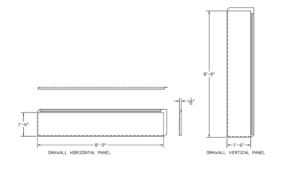

  • Panel Size: 18” x 96”; custom sizes available
  • Panel Depth: 1 1/2”
  • Reveal Width: 5/8”
  • Texture: smooth
  • Finish: 70% PVDF
  • Colors: Choice of over 40 standard colors; custom colors and finishes available
  • Anodized: Clear Satin, Dark Bronze
  • Accessories: a complete line of trims in matching colors, gauge, and finish or as specified

Custom Size Options

  • Material: aluminum
  • Material Thickness: .063”
