Multi-Purpose Panels

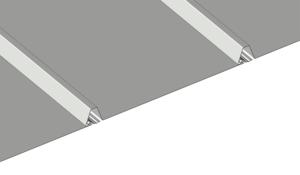

(MPN120 seen on top picture)

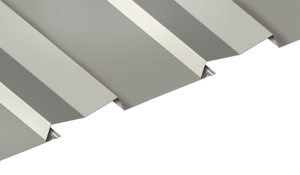

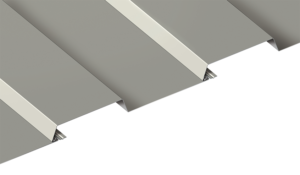

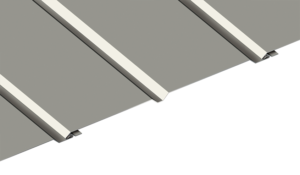

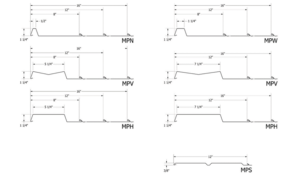

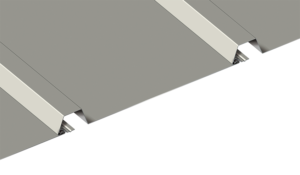

The variations of this profile start with the standing seam, to the batten style, to the plank and barn board. The texture is either smooth or stucco embossed. A slight “V” is formed into the plank or barn board for a variance of style. The Multi-Purpose™ panels with the Wind-Lok® interlock have a smooth but sleek appearance with a concealed clip-less fastening system.

Material:

  • .032, .040 aluminum
  • 24, 22* ga. metallic coated steel
  • 16, 20 oz. copper*
  • .8, 1.0 mm zinc* (MPS: .8 only)
  • .0197 classic & tin matte stainless steel*(MPS: .032 aluminum)

Panel Coverage:

  • 8″, 12″ and 16″
  • Panel Depth:
  • 1¼”⅜” (MPS)

Texture:

  • Smooth & Embossed

Perforations:

  • Available

Finish:

  • 70% PVDF

Colors:

  • Choice of over 35 stock colors. Custom colors and finishes available*

Anodized:

  • Clear Satin & Dark Bronze

Typical Applications:

  • Walls
    • May be applied horizontally & vertically
  • Roofs
    • Some limited applications with slope of 3:12 or greater
  • Facia
  • Soffits
  • Mansards
  • Equipment Screens

*Subject to minimum quantities and extended lead times
