Multi-Purpose Panel
October 10, 2019
Foundation of How ATAS Started
- Evolved into a propriety product
- Trade marked in 1974
- Negative pressure creates the interlock to become tighter

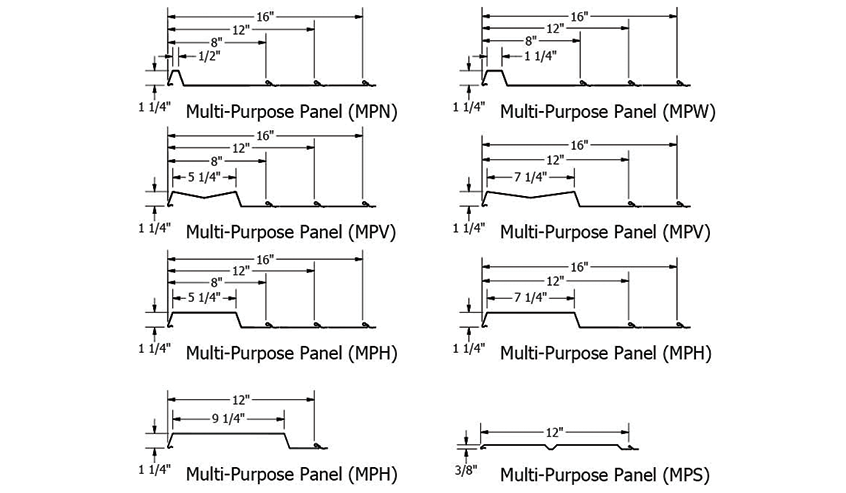

Profile Styling Variations
- Standing seam
- Batten style
- Plank and barn board (slight “V”) – also available
Product Information
- .032, .040 aluminum
- 24, 22* ga. metallic coated steel
- 16, 20 oz. copper*
- .7, .8, & 1.0 mm zinc*
- MPH129, MPS120 and MPV120 are NOT available in any zinc
- .0197 classic & tin matte stainless steel*
- MPS120 and MPV120: .032 aluminum only
- MPH129: .040 aluminum, 22 ga. steel only
- Minimum Panel Length
- 2’-0” (MPH129: 3′-0″)
Maximum Panel Length
- Transportation limitations and/or product and project design considerations (MPH129: 20′-0″)
- Concealed fastener panel
- Perforations available
- Smooth or embossed
- Florida Building Product Approval
- FL 16083 (MPS120 solid & MPV120 vented Only)
Applications
- Vertical
- Horizontal (walls only)
- Limited roofing applications
- Ridge to eave only
- Minimum 3:12
- Mansard
- Soffit
- Interior
- Open framing
- Solid substrate
*Subject to minimum quantities and extended lead time Inquire for
material and panel coverage availability
