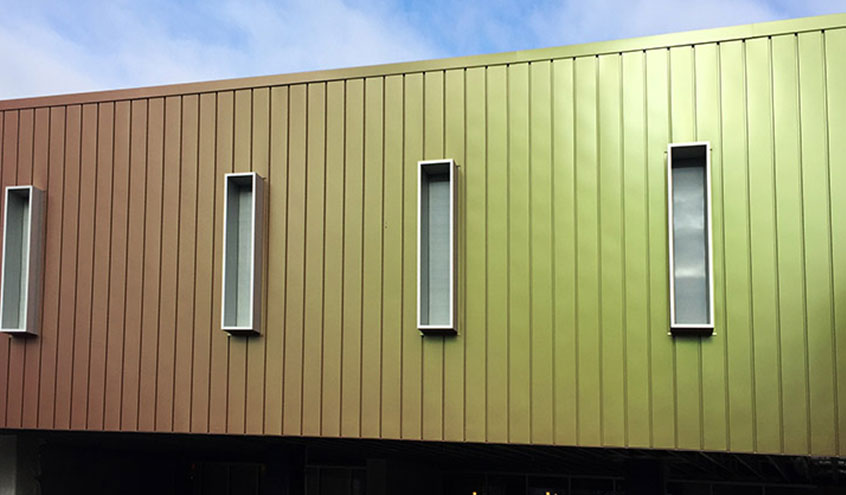

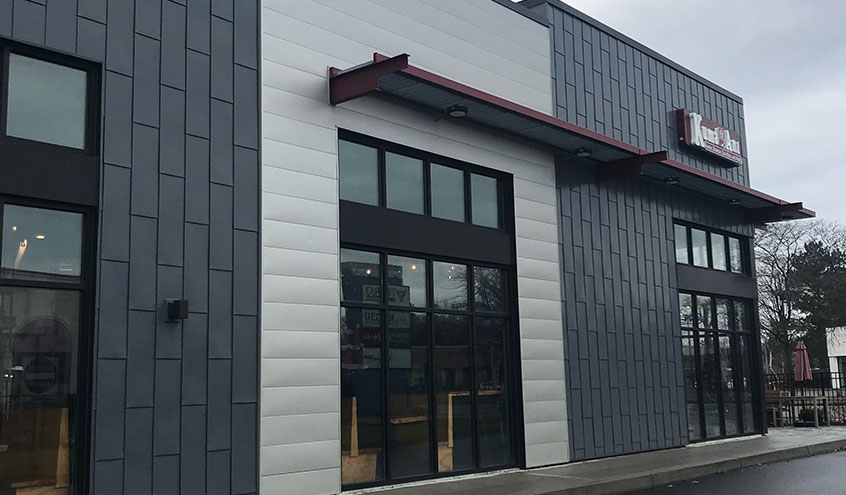

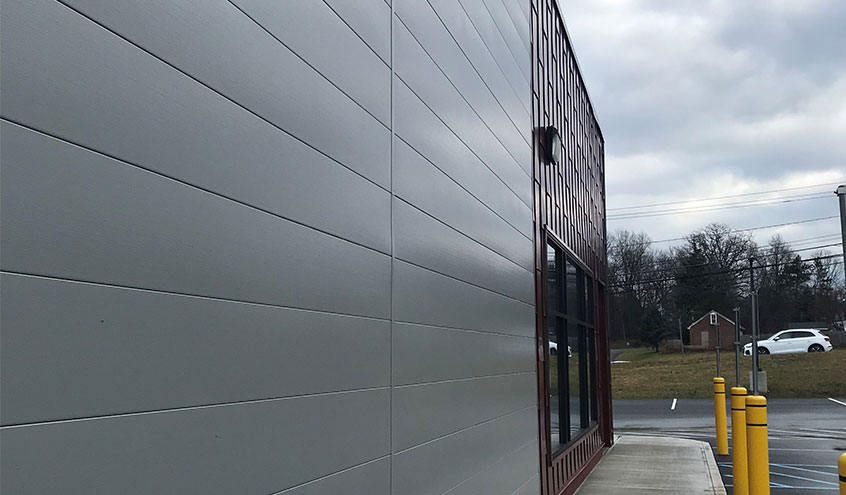

The Design Wall™ System is a structural panel with optional louvered style venting. It consists of a 12” wide panel in two distinct profiles: a smooth panel and a “board” panel. The “board” panel has an upside of 2” that may extend in 1” increments. It may be installed horizontally or vertically. Typical applications for this panel are walls, soffits, fascia or equipment screens.

Overview:

• DS series panels (High Design Wall)
  • 1 ¾” Deep
  • DSF120
  • DSH120
• DW series panels (Low Design Wall)
  • 1 1/8” Deep
  • DWF120
  • DWH120
• DSV120 (High Design Wall Flush V)
  • 1 3/4” Deep

Product Information:

• Aluminum – .032 / .040 / .050
• Metallic Coated Steel – 24 ga / 22* ga / 20* ga (non-stock )
• Zinc* – 0.8 mm / 1.0 mm
• Copper* – 16 oz / 20 oz – Needs to qualify / not all applications available
• Louvered and perforated venting available
• Choice of over 40 stock high performance colors
• Clear Satin and Dark Bronze Anodized available
• Texture
  • Smooth
  • Stucco Embossed
  • Wood Grain Embossed (DWF & DWH only, 24 ga. metallic coated steel, .032 aluminum & .040 aluminum only)

• Wind clip is available for increased load resistance

More than a wall panel, Design Wall is popular in ceiling, soffit, and equipment screen applications too.
