Design Wall Overview:
- DS series panels (High Design Wall): 1 ¾” Deep
- DSF120
- DSH120
- DW series panels (Low Design Wall): 1 1/8” Deep
- DWF120
- DWH120

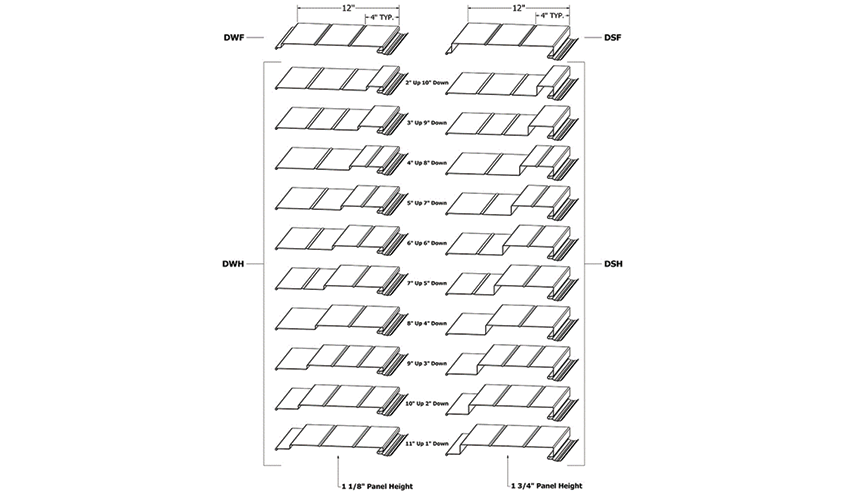

- These four profiles give a total of 22 different panel configurations
- Utilizes a tongue & groove interlock system to connect panels and conceal fasteners
- Material availability
- .032 / .040 / & .050 aluminum
- 24ga / 22ga / & 20ga ( Non-Stock ) steel
- Zinc and Copper available with certain restrictions
- Louvered venting and perforating both available

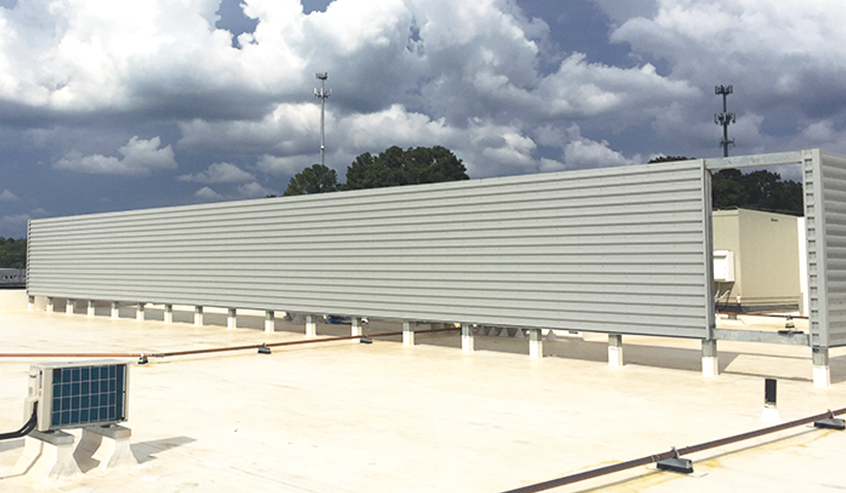

More than a wall panel, Design Wall is popular in ceiling, soffit, and equipment screen applications too.
