Belvedere 6” Short Rib Panel

Belvedere™ 6″ Short Rib wall panels are structural in nature and can be installed either on solid substrate or open framing. The Belvedere™ 6″ Short Rib wall panel is a 1½” deep ribbed panel that features six broad low and six narrow high cells. This panel can be installed horizontally and vertically with exposed fasteners. You can also enhance aesthetics of Belvedere™ 6″ Short Rib by using factory fabricated Elite Series accessories.

Material:
.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn coated steel with acrylic coating
Panel Coverage: 36″
Minimum Panel Length: 6’-0”
Maximum Panel Length: Transportation limitations and/ or product and project design considerations
Panel Depth: 1½”
Texture: Smooth or Stucco Embossed

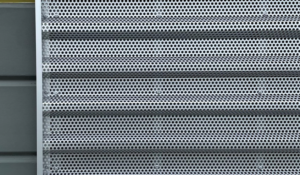

Perforations Available: Yes
Curving Available:
Crimp-Curved (convex & concave)
Finish: High-performance finish
Colors:
Choice of over 40 stock colors
Custom colors and finishes available*
Anodized:
Clear Satin
Dark Bronze
Accessories:
A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time. Inquire for material and panel coverage availability
