February 18, 2022

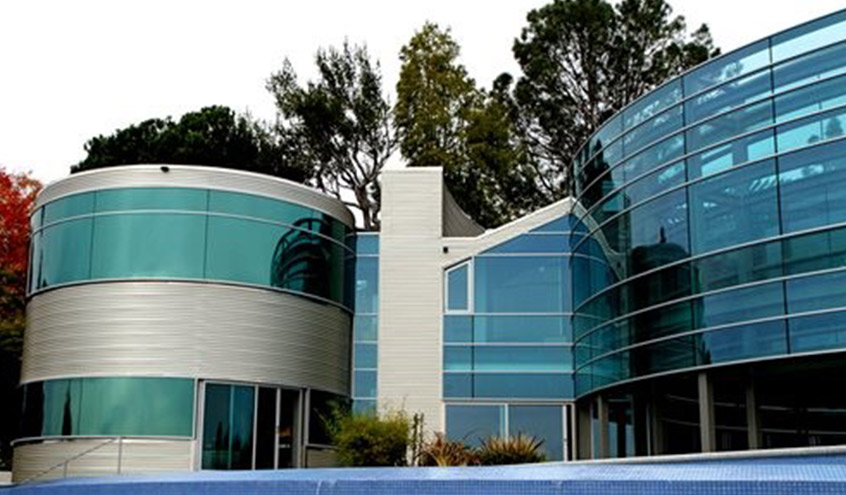

The Arc-Metafor panel is a structural ribbed panel that utilizes the Wind-Lok™ fastening system. This panel can be a convex or concave form.

Product Information:

  • .032 aluminum
  • Choice of over 40 stock colors
  • Clear satin and dark bronze anodized
  • Stucco embossed or smooth texture
  • Cut to customer specifications with a minimum of 4’-0”, maximum to transportation limitations and/or product and project design considerations
  • Convex (min. radius 5’-9”)
  • Concave (min. radius 10’-0”)
  • Vertical and horizontal orientation
  • Roof and wall applications

Wind-Lok™ Positive Locking Feature:

  • Guards against wind-driven rain and wind uplift
  • Still allows for air permeability
  • Virtually impossible for panel to slip apart
  • UL580 Class 90 uplift
