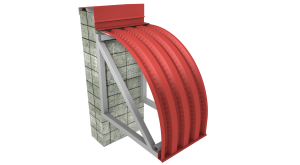

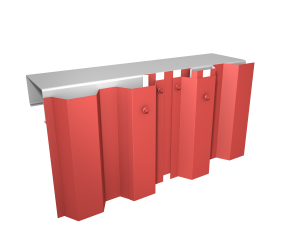

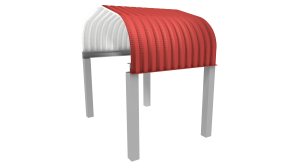

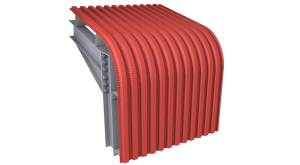

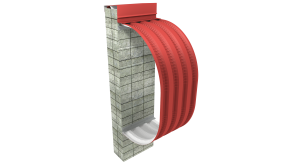

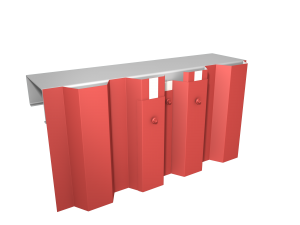

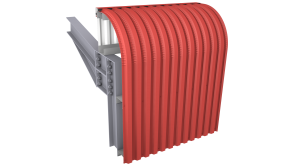

Curveline’s “crimp-curving” process can be performed on a wide range of metal panels — including exposed fastener roofing and wall panels, standing seam roofing profiles, decking profiles and more.
The curving process makes it possible to use many profiles interchangeably — e.g., a roofing profile may be used in a siding application, and vice versa. In addition, many profiles are curvable in either direction.
To use the Curveline process, simply select the profile of your choice, determine the required substrate and gauge, and specify the desired radii and angles of curvature. The curving parameters provided here are intended to aid in the design process.
Listed below are general curving parameters for each profile. Information on specific panel products is available from individual manufacturers.
Documents
Panel Profile
A
Curving Parameters
36″ W x 1-1/2″ D x 9″ Pitch
Convex and/or Concave
1 ft O.S. Rad. Min. 24 Ga.
3 ft O.S. Rad. Min. 20 to 22 Ga.
6 ft O.S. Rad. Min. 18 Ga.
Can be Perforated
X
B
36″ W x 1-1/2″ D x 6″ Pitch
Convex and/or Concave
1 ft O.S. Rad. Min. 24 Ga.
3 ft O.S. Rad. Min. 20 to 22 Ga.
6 ft O.S. Rad. Min.. 18 Ga.
X
C
35″ W x 1-1/2″ D x 7″ Pitch
Convex Only
1 ft O.S. Rad. Min. 24 Ga.
3 ft O.S. Rad. Min. 20 to 22 Ga.
6 ft O.S. Rad. Min. 18 Ga.
D
16″ W x 1-5/8″ D x 8″ Pitch
Concealed Fastener – Convex Only
2 ft O.S. Rad. Min. 22 to 24 Ga.
E
36″ W x 1-1/2″ D x 7.2″Pitch
Convex and/or Concave
1 ft O.S. Rad. Min. 24 Ga.
3 ft O.S. Rad. Min. 20 to 22 GA.
6 ft O.S. Rad. Min. 18 Ga.
X
J
36″ W x 1″ TO 1-1/2″ D x 12″ Pitch
Convex Only
2 ft O.S. Rad. Min. 24 Ga.
4 ft O.S. Rad. Min. 20 to 22 Ga.
K
24″ W x 4″ D x 12″ Pitch
Convex and/or Concave
4 ft O.S. Rad. Min. 24 Ga.
6 ft O.S. Rad. Min. 24 Ga.
10 ft O.S. Rad. Min. 22 Ga.
15 ft O.S. Rad. Min. 18 to 20 Ga.
N
36″ W x 1-1/2″ D x 7.2″ Pitch
Convex and/or Concave
2 ft O.S. Rad. Min. 22 to 24 Ga.
6 ft O.S. Rad. Min. 18 to 20 Ga.
X
O
36″ W x 3/4″ D x 6″ Pitch
Convex and/or Concave
2 ft O.S. Rad. Min. 24 GA.
6 ft O.S. Rad. Min. 20 to 22 Ga.
X
P
36″ W x 1-1/2″ D x 6″ Pitch
30″ B-Deck- Convex & Concave
4 ft O.S. Rad. Min. 24 Ga.
8 ft O.S. Rad. Min. 20 to 22 Ga.
20 ft O.S. Rad. Min. 18 Ga.
X
U
36″ W x 1″ D x 6″ Pitch
Convex Only
2 ft O.S. Rad. Min. 22 to 24 Ga.
6 ft O.S. Rad. Min. 18 to 20 Ga.
X
V
12″ – 18″ – 24″ W X 3″ D
Concealed Fastener – Convex Only
40 ft Min. O.S. Rad. 24 to 26 Ga.
75 ft Min. O.S. Rad. 22 Ga.
X
32″ – 36″ W x 7/8″ D x 2.67″ Pitch
Convex and/or Concave
2 ft O.S. Rad. Min. 24 Ga.
4 ft O.S. Rad. Min. 22 Ga.
6 ft O.S. Rad. Min. 20 Ga.
X
NOTES:
- Grades of steel are 50ksi yield strength maximum.
- Most panels can be curved in aluminum – Temper H14 or Stainless Steel – Type 304.
- Curveline, Inc., is a service company that curves panels for panel manufacturers only. Curveline, Inc., is not a manufacturer or supplier of panels or material.
- The technical division at Curveline is available for assistance concerning architectural and structural applications only.
- For information regarding prices, colors, gauges, flashings, and/or the “crimped curved” panels being used on a project, consult with the panel manufacturer(s).
- Depending on quantity, normal curving production time is 10 days upon receipt of material.
- During peak construction months, production times will vary. Curveline and the panel manufacturers cannot be held liable for construction schedules due to the specialized process that is performed on the manufacturer’s panels.
Technical Data
The following general guidelines apply to crimp-curved panel applications.
| STEEL THICKNESS | 18, 20, 22, 24, 26 gauge |
| ALUMINUM THICKNESS | .032″, .040″, .050″, temper H14 |
| STAINLESS STEEL THICKNESS | 20, 22, 24, 26 gauge |
| PANEL LENGTH | 2 ft minimum; 35 ft maximum (depending on radius) |
| PANEL DEPTH | 3/4″ to 4″ deep |
| PANEL WIDTH | 4 ft maximum |
| MATERIALS | Panel materials suitable for crimp-curving include painted or unpainted galvanized steel, or 55% Al-Zn alloy coated steel painted or with acrylic coating, aluminum, anodized aluminum and stainless steel. ASTM Grades A, B, C, CQ and D steel can be readily crimp-curved. |
| MINIMUM RADIUS | Varies by profile. Contact us for minimum radius. |
| COLORS & FINISHES | Virtually all paint systems used on standard profiled panels are suitable for crimp-curving. Consult panel manufacturer for information on available colors and finishes. Crimp-curving can also be performed on anodized panels, or on panels which are primed for post-painting. Stainless steel Type 304-2B finishes are also suitable for curving. |
| TECHNICAL SUPPORT SERVICES | Curveline’s technical staff is available to answer your questions on all types of standard and special curving applications. Curveline can provide additional technical data on request, including engineering span tables based on snow load and wind conditions. Sketch drawings are also available to stimulate design ideas. |
| CURVED PANEL APPLICATIONS | – Roofing systems – Wall systems – Fascias & Mansards – Canopies & Walkway covers – Structural decking (hidden and exposed) – Acoustical decking – Storefronts & entranceways – “Faux” columns – Flashings & Trims – Solar screens & solar equipment components – Equipment screens – Sound barriers – Enclosures for mechanical & electrical components – Radiused form work for decorative concrete construction – Curved girts and light framing members |
